FESTO Actuator - Anodized aluminum - NBR - Size 900 - F10-F12 - Single acting - 100°C - NC

Name: FESTO Actuator - Anodized aluminum - NBR - Size 900 - F10-F12 - Single acting - 100°C - NC
Brand: Festo
SKU: DFPD-900-RP-90-RS60-F1012
Price: 1.171.75 EUR
Availability: InStock

Reference : DFPD-900-RP-90-RS60-F1012

Brand reference : 8084135

Catalog Price :

€1,171.75

Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)	2
Stock Belgium (Barchon)	5
Stock Belgium (Chaineux)	Quantity and short lead time to be confirmed on request
Manufacturer stock	Quantity and short lead time to be confirmed on request

Body material	Aluminium moulé sous pression
Sealing	NBR
Operated	Simple effet - NF
Operating torque, pressure opening at 6 bar	593,5 Nm
Operating torque, spring closure	595 Nm
Adapter plate	F10/F12
Output star	27 mm
Customs duty number	8412-3900
Gross weight (kg)	30,395
Eclass	27290000
Country of origin	DE
UNSPSC Code	27131700

Description
Documents

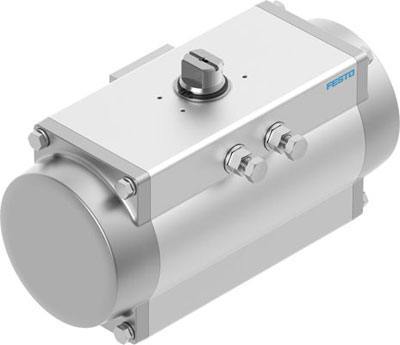

FESTO rack and pinion pneumatic actuators Series DFPD
- Size: 900
- Rotation angle: 90°, adjustable -5° to +5° and +80° to +95
- Single acting
- Opening torque by pressure at 6 bar: 593.5 / 323.6 Nm
- Actuating torque closing by spring: 595 / 325,1 Nm
- Direction of rotation: CW Spring closed / clockwise
- Piston material: Die-cast aluminium
- Compressed air supply connection G1/4" or according to NAMUR VDI/VDE 3845
- Valve interface to ISO 5211: F10-F12
- Drive via 45° square 27mm x 27mm
- Temperature range: Standard: -20 °C to +80 °C
- Operating pressure from 2 to 8 bar
- ATEX II 2 GD, SIL2
