Reference : SRBC-CA3-YR90-MW-22A-1W-C2P20
Brand reference : 3482805
Catalog Price :
€66.29
Tax excluded 21.00 %
| Body material | Aluminum |
| Specifications | Boîtiers de fin de course |
| Customs duty number | 8537-1098 |
| Gross weight (kg) | 0,8478 |
| Eclass | 27290000 |
| Country of origin | DE |
| UNSPSC Code | 27131700 |

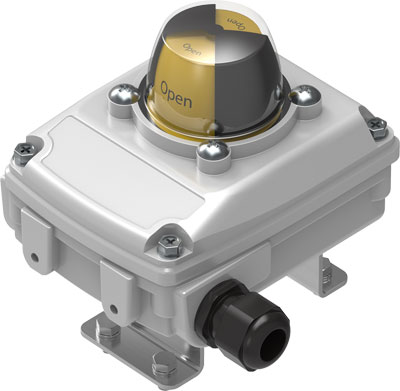

FESTO limit switch box
- Aluminium housing with yellow/red 3D indicator
- Digital output with contact
- Two-way switch, 1-pole
- Max. switching current 3A from 0 to 250VAC - 3A from 0 to 30VDC
- Protection class IP67
- Electrical connection: 10-pole screw terminal
- Supplied with cable gland M20x1.5
- On flange according to ISO5211
- With mounting bracket
- Aluminium housing with yellow/red 3D indicator
- Digital output with contact
- Two-way switch, 1-pole
- Max. switching current 3A from 0 to 250VAC - 3A from 0 to 30VDC
- Protection class IP67
- Electrical connection: 10-pole screw terminal
- Supplied with cable gland M20x1.5
- On flange according to ISO5211
- With mounting bracket
