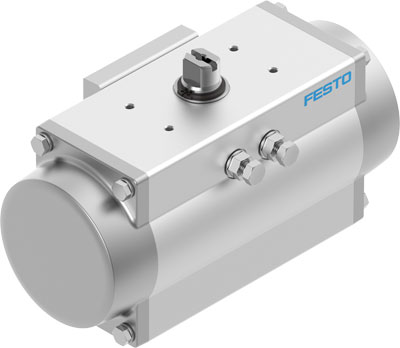

FESTO Actuator - Anodized aluminum - NBR - Size 80 - F05-F07 - Single acting - 100°C - NC

Name: FESTO Actuator - Anodized aluminum - NBR - Size 80 - F05-F07 - Single acting - 100°C - NC
Brand: Festo
SKU: DFPD-80-RP-90-RS60-F0507
Price: 207.54 EUR
Availability: InStock

Reference : DFPD-80-RP-90-RS60-F0507

Brand reference : 8047626

Catalog Price :

€207.54

Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)	3
Stock Belgium (Barchon)	5
Stock Belgium (Chaineux)	Quantity and short lead time to be confirmed on request
Manufacturer stock	Quantity and short lead time to be confirmed on request

Body material	Aluminium moulé sous pression
Sealing	NBR
Operated	Simple effet - NF
Operating torque, pressure opening at 6 bar	60,3 Nm
Operating torque, spring closure	58,4 Nm
Adapter plate	F05/F07
Output star	17 mm
Customs duty number	8412-3900
Gross weight (kg)	4,13515
Eclass	27290000
Country of origin	DE
UNSPSC Code	27131700

Description
Documents

FESTO rack and pinion pneumatic actuators Series DFPD
- Size: 80
- Rotation angle: 90°, adjustable -5° to +5° and +80° to +95
- Single acting
- Opening torque by pressure at 6 bar: 60.3 / 31.5 Nm
- Closing torque by spring: 58.4 / 29.6 Nm
- Direction of rotation: CW Spring closed / clockwise
- Piston material: Die-cast aluminium
- Compressed air supply connection G1/8" or according to NAMUR VDI/VDE 3845
- Valve interface to ISO 5211: F05-F07
- Drive via 45° square 17mm x 17mm
- Temperature range: Standard: -20 °C to +80 °C
- Operating pressure from 2 to 8 bar
- ATEX II 2 GD, SIL2
