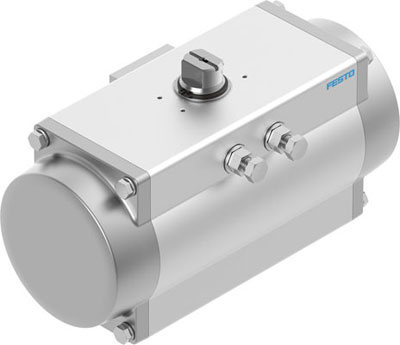

FESTO Actuator - Anodized aluminum - NBR - Size 480 - F10-F12 - Single acting - 100°C - NC

Name: FESTO Actuator - Anodized aluminum - NBR - Size 480 - F10-F12 - Single acting - 100°C - NC
Brand: Festo
SKU: DFPD-480-RP-90-RS60-F1012
Price: 683.22 EUR
Availability: InStock

Reference : DFPD-480-RP-90-RS60-F1012

Brand reference : 8048142

Catalog Price :

€683.22

Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)	4
Stock Belgium (Barchon)	4
Stock Belgium (Chaineux)	Quantity and short lead time to be confirmed on request
Manufacturer stock	Quantity and short lead time to be confirmed on request

Body material	Aluminium moulé sous pression
Sealing	NBR
Operated	Simple effet - NF
Operating torque, pressure opening at 6 bar	347,1 Nm
Operating torque, spring closure	336,1 Nm
Adapter plate	F10/F12
Output star	27 mm
Customs duty number	8412-3900
Gross weight (kg)	18,87
Eclass	27290000
Country of origin	DE
UNSPSC Code	27131700

Description
Documents

FESTO rack and pinion pneumatic actuators Series DFPD
- Size: 480
- Rotation angle: 90°, adjustable -5° to +5° and +80° to +95
- Single acting
- Opening torque by pressure at 6 bar: 347.1 / 181 Nm
- Actuating torque closing by spring: 336.1 / 170 Nm
- Direction of rotation: CW Spring closed / clockwise
- Piston material: Die-cast aluminium
- Compressed air supply connection G1/4" or according to NAMUR VDI/VDE 3845
- Valve interface to ISO 5211: F10-F12
- Drive via 45° square 27mm x 27mm
- Temperature range: Standard: -20 °C to +80 °C
- Operating pressure from 2 to 8 bar
- ATEX II 2 GD, SIL2
