Actuator - Anodized aluminum - NBR - F16 - #46 - PN8 - Double acting - 100°C

Reference : ADA2100/0016/46

Brand reference : ADA210016N

Catalog Price :

2,327.05
Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)

-

Stock Belgium (Barchon)

1

Stock Belgium (Chaineux)

Quantity and short lead time
to be confirmed on request
Manufacturer stock Quantity and short lead time
to be confirmed on request
Body material Anodized aluminum
Sealing NBR
PN 8
Fluid working Temp (-)30°C to (+)100°C
Operated Air operated NC
Specifications 1/4 turn - Double acting
Operating torque, pressure opening at 6 bar 2172 Nm
Operating torque, spring closure 2172 Nm
Adapter plate F16
Output star 46 mm
Customs duty number 8481-9000
Gross weight (kg) 49,7
Eclass 27220000
Country of origin ES
UNSPSC Code 31251500

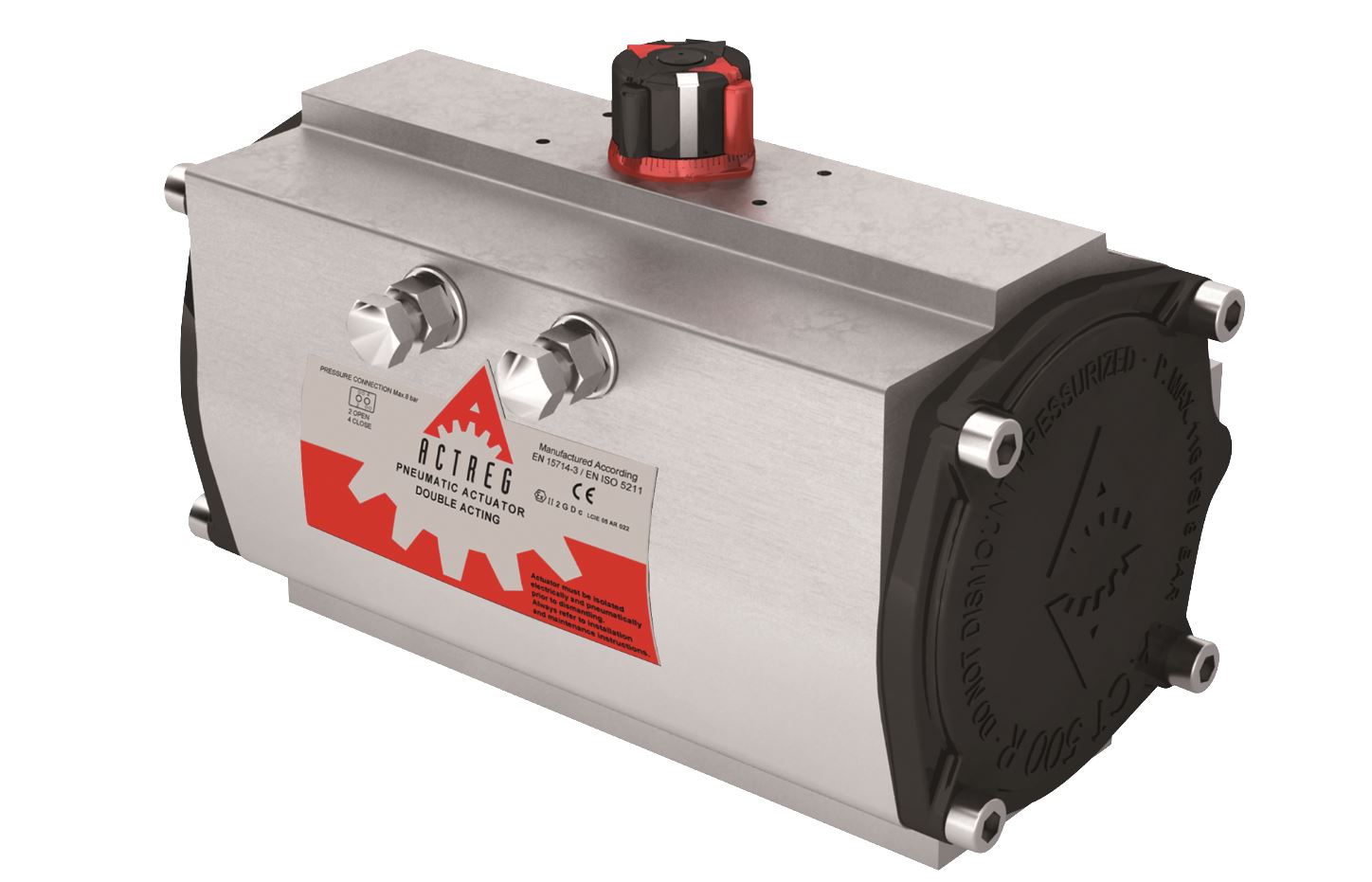

ACTREG quarter-turn pneumatic actuator TYPE ADA 2100
- Double acting
- Operating torque opening pressure at 6 bar : 2172 Nm
- Installation drawing F16
- Output star 46mm
- Operating angle 90°.
- Double stop adjustable +/- 5°
- Anodised aluminium body / epoxy coated aluminium flanges
- Standard seals in NBR
- Operating temperature range -30° to +100°C
- Maximum operating pressure 8 bar
- Compressed air supply connection G1/4" or according to NAMUR VDI/VDE 3845
- Multifunctional position indicator
- ATEX EEx II 2G/D for zone 1, 2, 21 & 22
