Reference : GEXX.001.01
Catalog Price :
€74.74
Tax excluded 21.00 %
| Body material | Aluminum |
| Specifications | Boîtiers de fin de course |
| Customs duty number | 8536-5080 |
| Gross weight (kg) | 0,8 |
| Eclass | 27220000 |
| Country of origin | CN |
| UNSPSC Code | 31251500 |

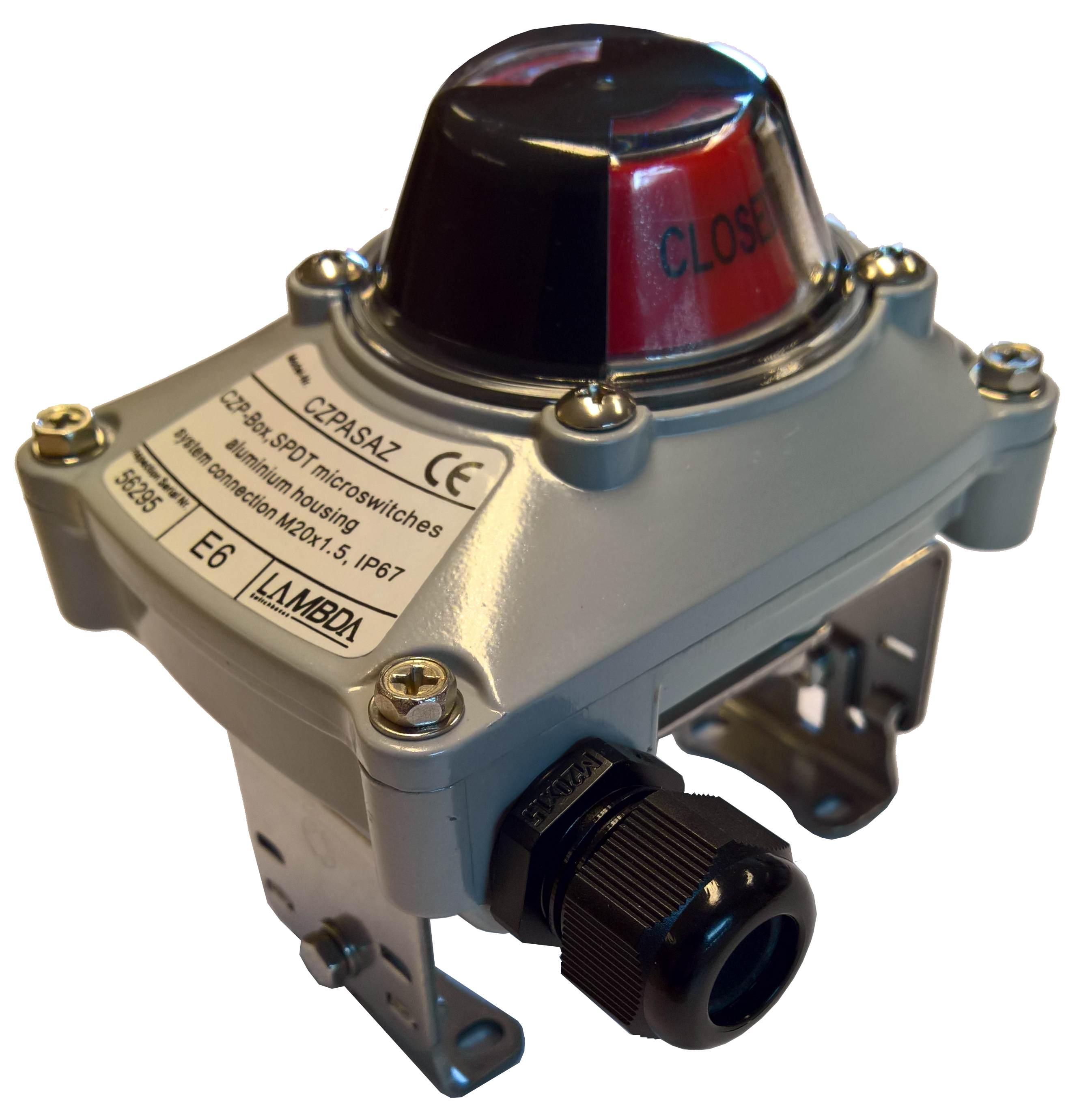

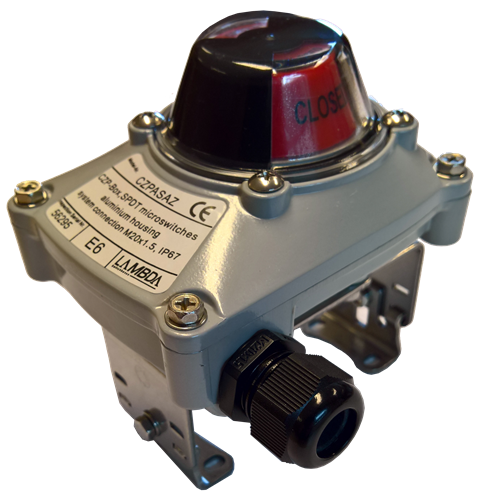

LAMBDA CZPASAZ limit switch box
- Aluminium housing with yellow/red 3D indicator
- 2 electromechanical contacts Honeywell SPDT ZM50G10B01 UL CSA
- Max. switching current 5A 125 VAC / 250VAC - 5 AR 30VDC
- Protection class IP67
- Electrical connection: 2 x M20x1.52 inputs M20x1.5
- Supplied with cable gland M20x1.5 and plug M20x1.5
- Axis output length 25mm
- 8-pole terminal block
- With stainless steel bracket for sizes 1 to 3 according to VDI/VDE 3845 (length 80mm & 130mm, height 20mm & 30mm)
- Aluminium housing with yellow/red 3D indicator
- 2 electromechanical contacts Honeywell SPDT ZM50G10B01 UL CSA
- Max. switching current 5A 125 VAC / 250VAC - 5 AR 30VDC
- Protection class IP67
- Electrical connection: 2 x M20x1.52 inputs M20x1.5
- Supplied with cable gland M20x1.5 and plug M20x1.5
- Axis output length 25mm
- 8-pole terminal block
- With stainless steel bracket for sizes 1 to 3 according to VDI/VDE 3845 (length 80mm & 130mm, height 20mm & 30mm)
