Actuator - Anodized aluminum - NBR - F10 - F12 - #27 - 14 springs - PN8 - Single acting - 100°CC

Name: Actuator - Anodized aluminum - NBR - F10 - F12 - #27 - 14 springs - PN8 - Single acting - 100°CC
Brand: Actreg
SKU: ASR0850/14/1012/27
Price: 1.024.84 EUR
Availability: InStock

Reference : ASR0850/14/1012/27

Brand reference : ASR08501014CN

Catalog Price :

€1,024.84

Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)	2
Stock Belgium (Barchon)	2
Stock Belgium (Chaineux)	Quantity and short lead time to be confirmed on request
Manufacturer stock	Quantity and short lead time to be confirmed on request

Body material	Anodized aluminum
Sealing	NBR
PN	8
Fluid working Temp	(-)30°C to (+)100°C
Operated	Air operated NC
Specifications	1/4 turn - Single acting
Operating torque, pressure opening at 6 bar	488 Nm
Operating torque, spring closure	271 Nm
Adapter plate	F10/F12
Output star	27 mm
Customs duty number	8412-3900
Gross weight (kg)	22,2
Eclass	27220000
Country of origin	ES
UNSPSC Code	31251500

Description
Documents

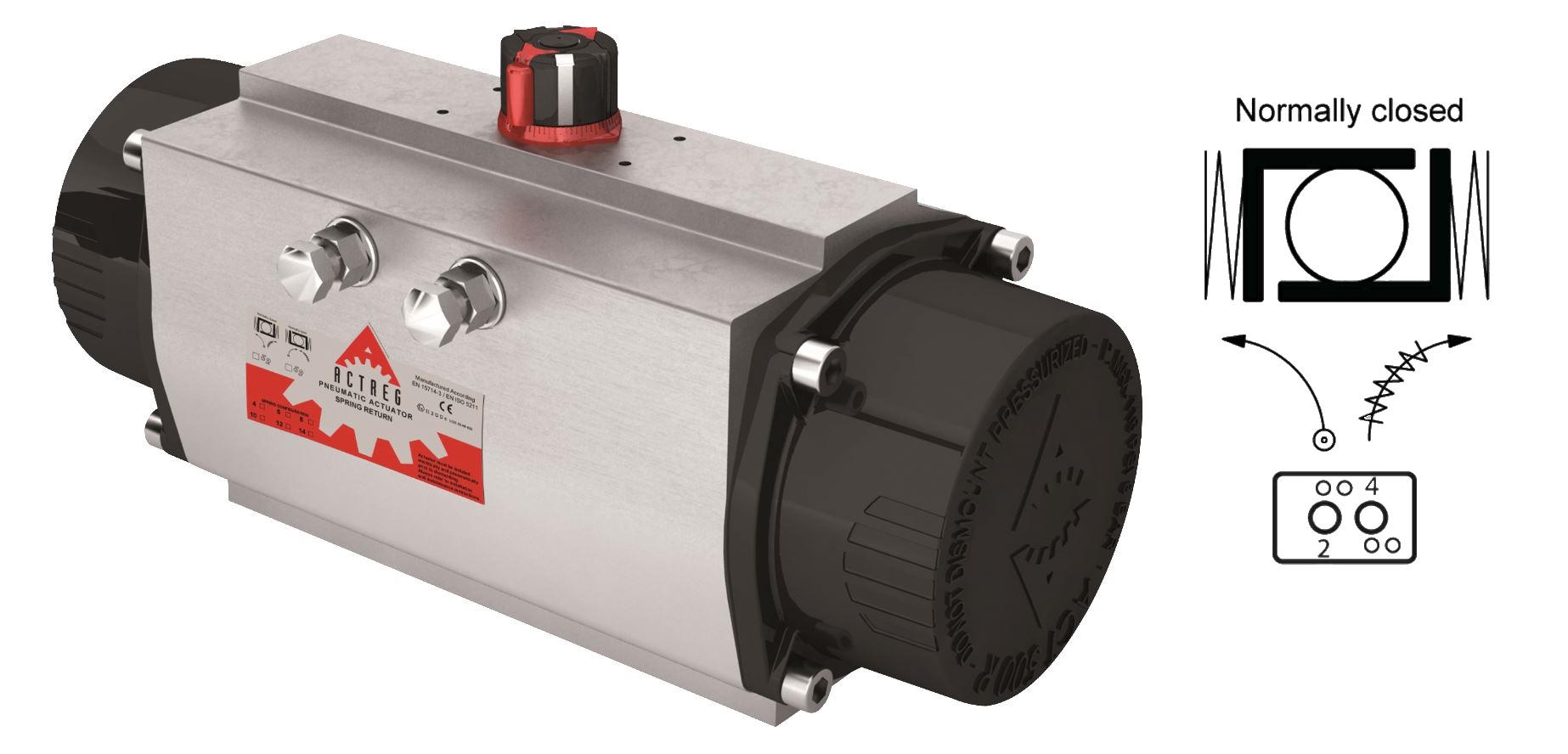

ACTREG pneumatic quarter-turn actuator TYPE ASR 850
- Single acting
- 14 springs
- Opening torque by pressure at 6 bar : 488 / 367 Nm
- Closing torque by spring : 271 / 412 Nm
- Installation drawing F10-F12
- Output star 27mm
- Actuating angle 90°
- Double stop adjustable +/- 5°.
- Anodised aluminium body / epoxy coated aluminium flanges
- Standard seals in NBR
- Operating temperature range -30° to +100°C
- Maximum operating pressure 8 bar
- Compressed air supply connection G1/4" or according to NAMUR VDI/VDE 3845
- Multifunctional position indicator
- ATEX EEx II 2G/D for zone 1, 2, 21 & 22
- Direction of rotation by springs: clockwise (for valve normally closed at rest)
