Reference : ADA0020/0004/14
Brand reference : ADA002004N
Catalog Price :
€133.56
Tax excluded 21.00 %
| Body material | Anodized aluminum |
| Sealing | NBR |
| PN | 8 |
| Fluid working Temp | (-)30°C to (+)100°C |
| Operated | Air operated NC |
| Specifications | 1/4 turn - Double acting |
| Operating torque, pressure opening at 6 bar | 19,5 Nm |
| Operating torque, spring closure | 19,5 Nm |
| Adapter plate | F04 |
| Output star | 14 mm |
| Customs duty number | 8481-9000 |
| Gross weight (kg) | 1,4 |
| Eclass | 27220000 |
| Country of origin | ES |
| UNSPSC Code | 31251500 |

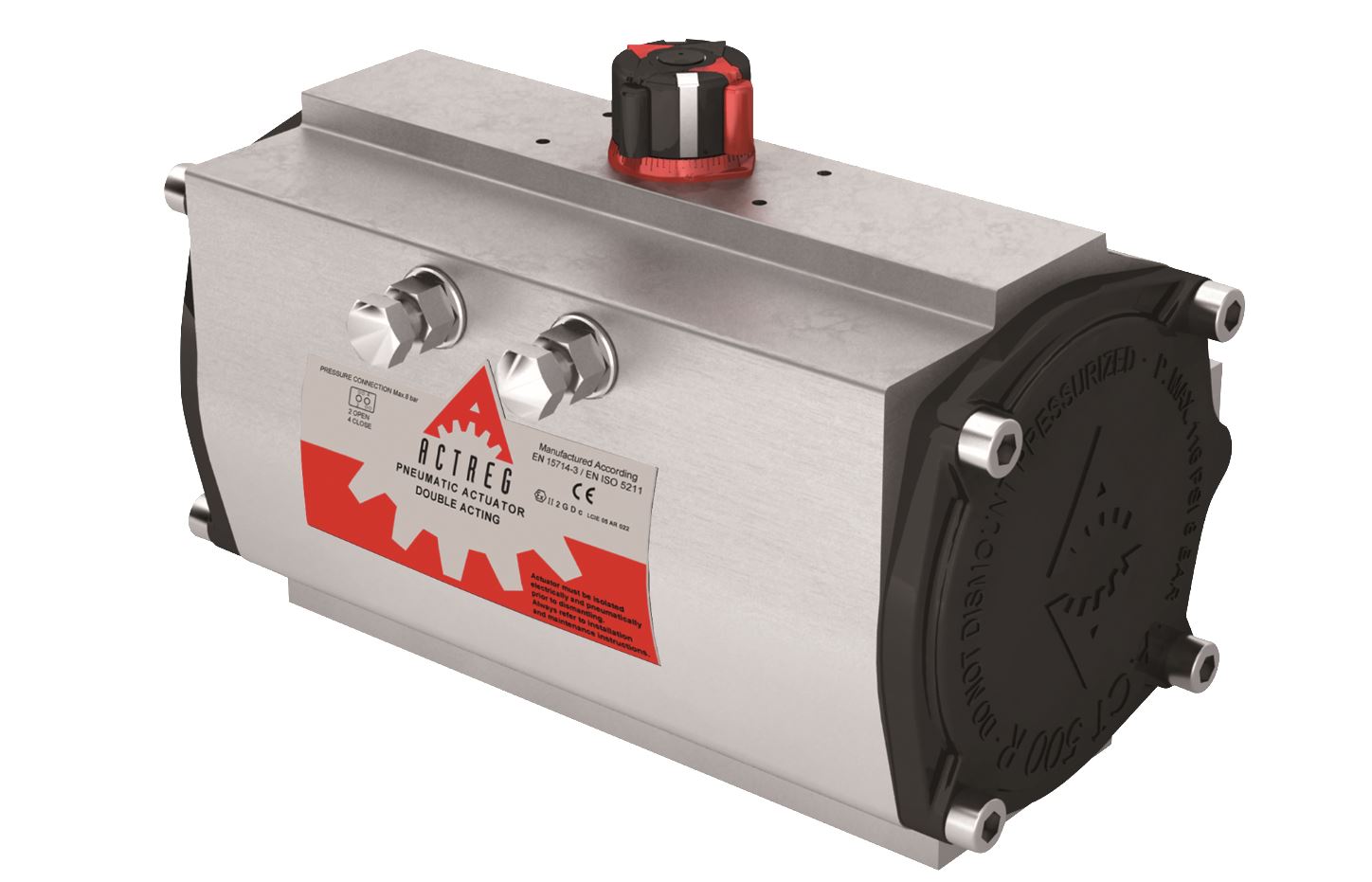

ACTREG quarter-turn pneumatic actuator TYPE ADA 20
- Double acting
- Opening pressure torque at 6 bar : 19,5 Nm
- Installation drawing F04
- Output star 14 mm
- Operating angle 90°.
- Double stop adjustable +/- 5°
- Anodised aluminium body / epoxy coated aluminium flanges
- Standard seals in NBR
- Operating temperature -30° to +100°C
- Maximum operating pressure 8 bar
- Compressed air supply connection G1/4" or according to NAMUR VDI/VDE 3845
- Multifunctional position indicator
- ATEX EEx II 2G/D for zone 1, 2, 21 & 22
- Double acting
- Opening pressure torque at 6 bar : 19,5 Nm
- Installation drawing F04
- Output star 14 mm
- Operating angle 90°.
- Double stop adjustable +/- 5°
- Anodised aluminium body / epoxy coated aluminium flanges
- Standard seals in NBR
- Operating temperature -30° to +100°C
- Maximum operating pressure 8 bar
- Compressed air supply connection G1/4" or according to NAMUR VDI/VDE 3845
- Multifunctional position indicator
- ATEX EEx II 2G/D for zone 1, 2, 21 & 22
