Référence : HTWP2142AR
Prix catalogue :
8 106,00 €
HTVA 21,00 %
| Poids brut (kg) | 0 |
| Eclass | 27300000 |
| UNSPSC Code | 27121600 |

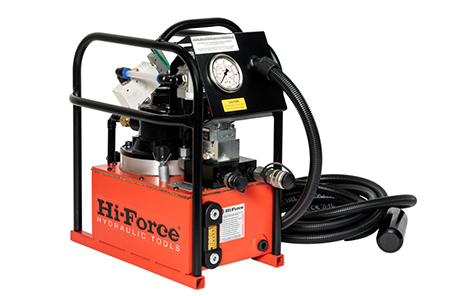

electric driven 2-stage pump
oil capacity 5 litres, 1st stage oil flow
3.9 litres/minute, 2nd stage oil flow
litres/minute, changeover pressure 60
bar, 4/2-way solenoid valve for double
(advance-auto retract), 240 volt - 0.55
kW - 50 Hz electric motor, 700 bar max.
working pressure advance, 100 bar max.
working pressure retract, externally adjustable
torque setting pressure relief valve,
protective carrying frame with 63 mm diameter
pressure gauge integrated, hand pendant
with 3 metres cable for valve control,
connect couplers.
oil capacity 5 litres, 1st stage oil flow
3.9 litres/minute, 2nd stage oil flow
litres/minute, changeover pressure 60
bar, 4/2-way solenoid valve for double
(advance-auto retract), 240 volt - 0.55
kW - 50 Hz electric motor, 700 bar max.
working pressure advance, 100 bar max.
working pressure retract, externally adjustable
torque setting pressure relief valve,
protective carrying frame with 63 mm diameter
pressure gauge integrated, hand pendant
with 3 metres cable for valve control,
connect couplers.
