| Code Intrastat | 9026-2040 |
| Poids brut (kg) | 1,4 |
| Eclass | 27200000 |
| UNSPSC Code | 41110000 |

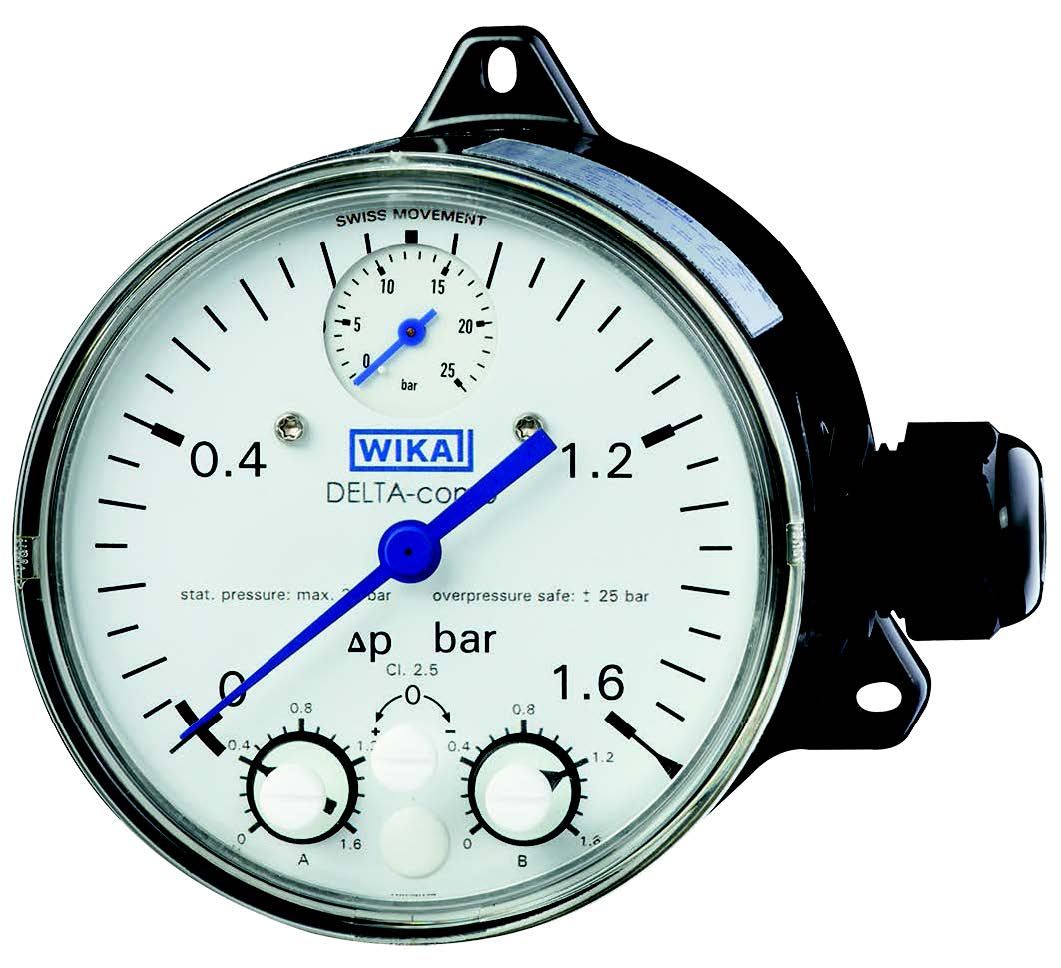

Differential pressure gauge DELTA-comb
With integrated working pressure indication and micro switch
Model: DPGS40
Specifications according to data sheet: PV 27.20
Differential pressure gauge: 100 mm
Mounting option: 3-hole surface mounting flange at case back
Scale range: 0 bar...1 bar
Working pressure gauge: with working pressure gauge 25 bar
Permissible medium temperature: -10...+90 °C
Permissible ambient temperature: -10...+70 °C
Measuring chamber: aluminium, black painted
Process connection: 2 x G 1/4 female
Connector location: bottom, in line
Seperation diaphragm / sealing: FPM / FKM
Window: plastic, with zero and switch point adjustment
Alarm contacts: SPDT micro switch 850.3
Electrical connection: cable gland with 1 metre flying lead
Switch hysteresis: max. 5 % of the full scale value
Pressure Gauge Standard: International (standard Europe)
With integrated working pressure indication and micro switch
Model: DPGS40
Specifications according to data sheet: PV 27.20
Differential pressure gauge: 100 mm
Mounting option: 3-hole surface mounting flange at case back
Scale range: 0 bar...1 bar
Working pressure gauge: with working pressure gauge 25 bar
Permissible medium temperature: -10...+90 °C
Permissible ambient temperature: -10...+70 °C
Measuring chamber: aluminium, black painted
Process connection: 2 x G 1/4 female
Connector location: bottom, in line
Seperation diaphragm / sealing: FPM / FKM
Window: plastic, with zero and switch point adjustment
Alarm contacts: SPDT micro switch 850.3
Electrical connection: cable gland with 1 metre flying lead
Switch hysteresis: max. 5 % of the full scale value
Pressure Gauge Standard: International (standard Europe)
