Reference : STTX.010.034
Catalog Price :
€535.00
Tax excluded 21.00 %
| Body material | PP/SAN |
| Sealing | NBR |
| Filtration | 25 µm |
| Type of connection | Threaded male |
| Diameter of connection | 3/4'' |
| PN | 10 |
| Fluid working Temp | 0°C to (+)50°C |
| Operation | Horizontal mounting only |
| Specifications | TRIO version filter |
| Size | NW25 |
| Compatibility - fluids | For water, drinking water and rainwater |
| Customs duty number | 8421-9900 |
| Gross weight (kg) | 6 |
| Eclass | 37010000 |
| Country of origin | BE |
| UNSPSC Code | 40140000 |

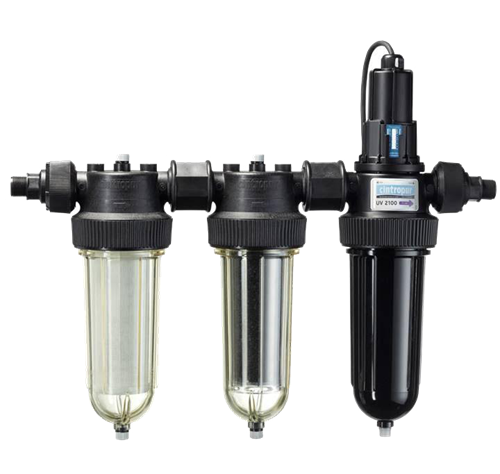

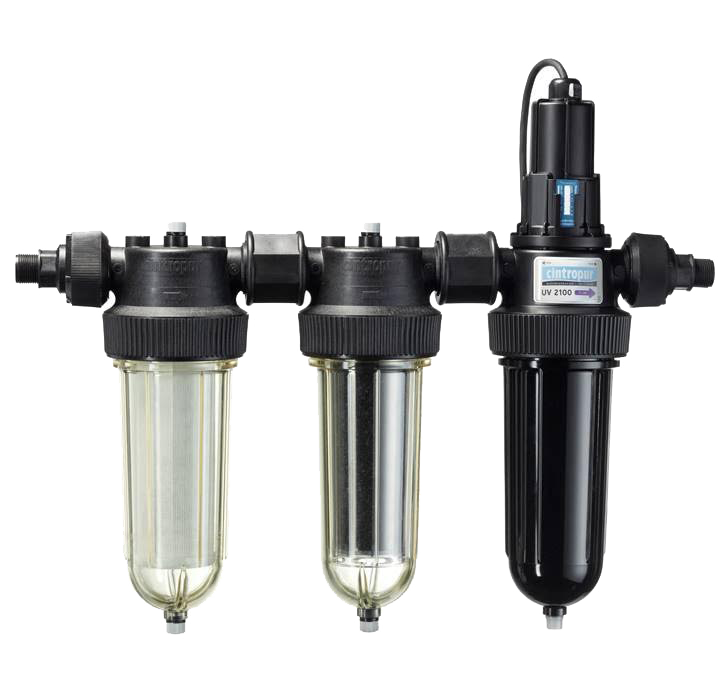

TRIO in-line filter - Filtration: 25 µm - Polypropylene and Styrene crylonitrile body - NBR seal - Threaded connection - Male-Male in 3/4'' and 1". - PN10 - Without control - Working temperature of the fluid: 0°C to (+)50°C
Consisting of:
- STTX.007
- NTC cartridge filled with activated carbon
- 2 PP wall brackets + 1 stainless steel bracket for UV
- 2 x 3/4'' connections + 2 x 1'' connections
- 1 disassembly key
- 2 assembly sleeves for filters (Type STAX.007)
- 1 screen 25µ
- 1 single UV lamp for mounting on the sterilizer
Consisting of:
- STTX.007
- NTC cartridge filled with activated carbon
- 2 PP wall brackets + 1 stainless steel bracket for UV
- 2 x 3/4'' connections + 2 x 1'' connections
- 1 disassembly key
- 2 assembly sleeves for filters (Type STAX.007)
- 1 screen 25µ
- 1 single UV lamp for mounting on the sterilizer
