Reference : 52 851-020
Catalog Price :
€126.28
Tax excluded 21.00 %
| Body material | Brass |
| Sealing | EPDM |
| Type of connection | Threaded Female |
| Diameter of connection | 3/4" |
| PN | 25 |
| Fluid working Temp | (-)20°C to (+)150°C |
| Operated | Manually |
| Customs duty number | 8481-8079 |
| Gross weight (kg) | 0,55 |
| Eclass | 37010000 |
| UNSPSC Code | 40140000 |

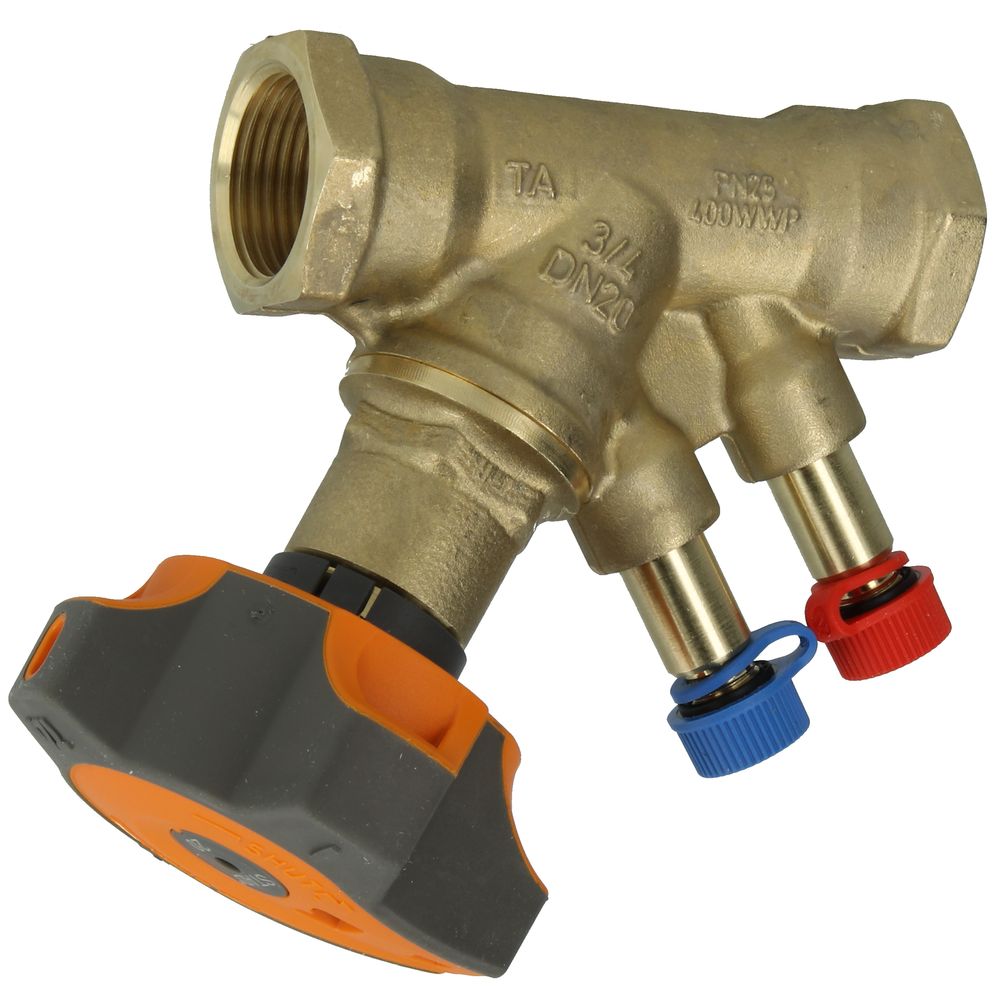

TA brass balancing valve model STAD
- DN 20
- Threaded connection G 3/4"
- Flow coefficient Kvs: 5.39 m³/h
- Pressure class PN 25
- Body and head in AMETAL
- Seat sealing in EPDM
- Pressure tappings: AMETAL
- Operating temperature range from -20°C to +120°C
- Without drain connection
- DN 20
- Threaded connection G 3/4"
- Flow coefficient Kvs: 5.39 m³/h
- Pressure class PN 25
- Body and head in AMETAL
- Seat sealing in EPDM
- Pressure tappings: AMETAL
- Operating temperature range from -20°C to +120°C
- Without drain connection
