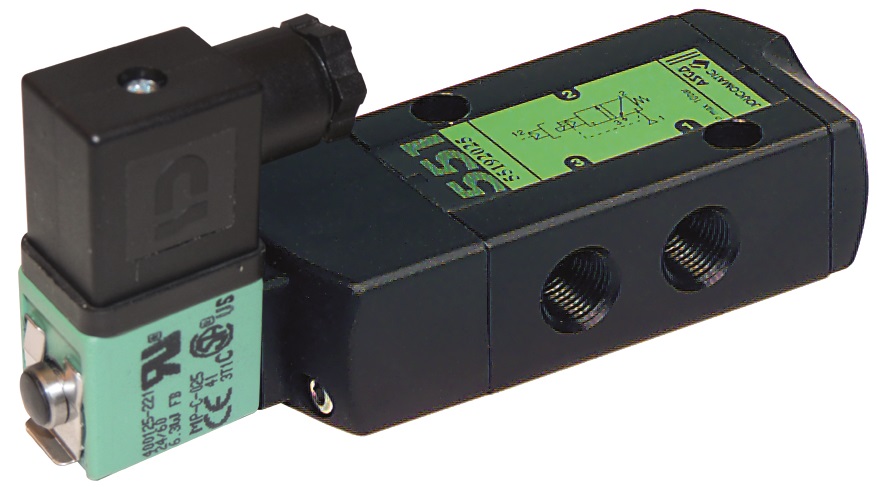

Reference : SCG551A005MS.48/DC
Catalog Price :
€156.98
Tax excluded 21.00 %
Assemblage de composants en stock, nécessite un délai supplémentaire jusqu’à 3 jours ouvrables départ de notre magasin
| Function | 3/2 Monostable normally closed |
| Operated | With pilot |
| Return | Spring |
| Body material | Anodized aluminum black |
| Joints | With |
| Diameter of connection | 1/4" |
| Voltage | 48/DC |
| Flow at 6 bar (ANR) | 860 |
| Operating pressure | 2 to 10 bar |
| Control pressure | 2 to 10 bar |
| Fluid working Temp | (-)25°C to (+)60°C |
| Compatibility - fluids | Air or neutral gas, filtered, lubricated or not |
| Customs duty number | 8481-8059 |
| Gross weight (kg) | 0,379 |
| Eclass | 27220000 |
| Country of origin | PL |
| UNSPSC Code | 31251500 |
