Reference : L22BA452BG00061
Catalog Price :
€234.90
Tax excluded 21.00 %
| Function | 5/2 Monostable |
| Operated | With pilot |
| Return | Spring |
| Body material | Anodized aluminum peinted |
| Joints | Without |
| Diameter of connection | 1/4" |
| Voltage | 24/DC |
| Flow at 6 bar (ANR) | 1700 |
| Operating pressure | 1 to 10 bar intern pilot - Vacuum to 15 bar external pilot |
| Control pressure | 1 to 10 bar |
| Fluid working Temp | (-)20°C to (+)80°C |
| Compatibility - fluids | Air or neutral gas, filtered, lubricated or not |
| Gross weight (kg) | 0 |
| Eclass | 27220000 |
| Country of origin | FR |
| UNSPSC Code | 31251500 |

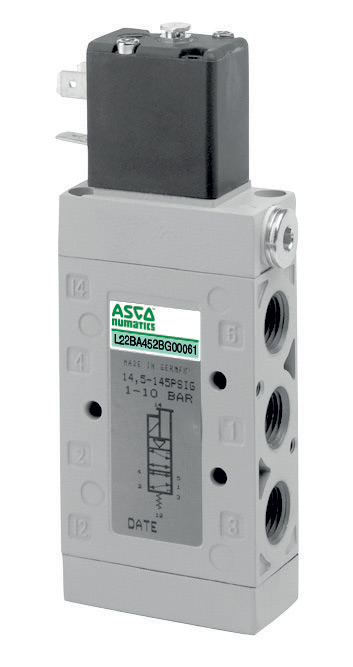

TAPPED DIRECTIONNAL VALVES NUMATICS SERIE L12 L22 - 1/4
Spool valve (no gasket) - 5/2 Mono - G1/4" - Solenoid Air operated - Spring return - 24/DC
Spool valve (no gasket) - 5/2 Mono - G1/4" - Solenoid Air operated - Spring return - 24/DC
