Reference : 7001000410
Catalog Price :
€57.21
Tax excluded 21.00 %
| Function | 5/2 Monostable |
| Operated | Bidirectionnal servo-controlled antenna roller |
| Return | Spring |
| Body material | Aluminum |
| Joints | With |
| Diameter of connection | 1/8" |
| Max flow (Normolitres) | 550 Nl/min |
| Operating pressure | 2,5 to 10 bar |
| Control pressure | 2,5 to 10 bar |
| Fluid working Temp | (-)10°C to (+)60°C |
| Compatibility - fluids | Air or neutral gas, filtered, lubricated or not |
| Customs duty number | 8481-8099 |
| Gross weight (kg) | 0,170402 |
| Eclass | 27290000 |
| Country of origin | IT |
| UNSPSC Code | 27131700 |

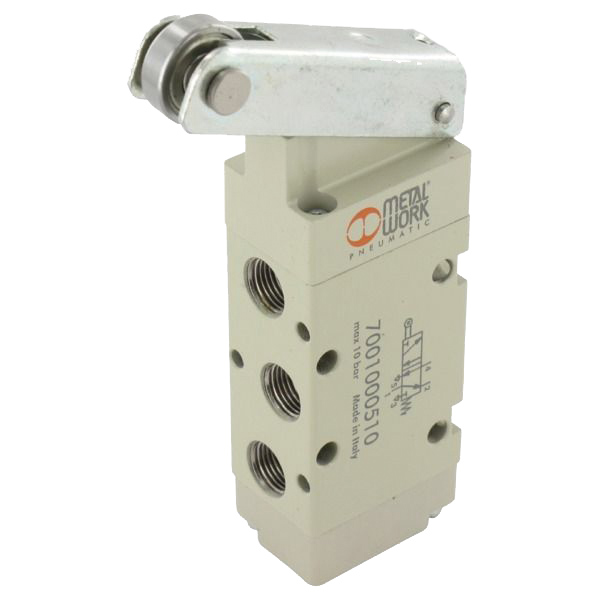

S70 VALVE 1/8 5/2 ROLLER
