Reference : G551A106
Catalog Price :
€112.50
Tax excluded 21.00 %
| Function | 3/2 Bistable |
| Operated | Air operated |
| Return | Pneumatic |
| Body material | Anodized aluminum black |
| Joints | With |
| Diameter of connection | 1/4" |
| Flow at 6 bar (ANR) | 860 |
| Operating pressure | 0 to 10 bar |
| Control pressure | 2 to 10 bar |
| Fluid working Temp | (-)25°C to (+)60°C |
| Compatibility - fluids | Air or neutral gas, filtered, lubricated or not |
| Customs duty number | 8481-2090 |
| Gross weight (kg) | 0,398 |
| Eclass | 27290000 |
| Country of origin | PL |
| UNSPSC Code | 27131700 |

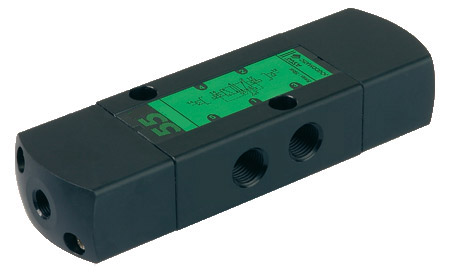

AIR OPERATED SPOOL VALVE G 1/4 NON-BREATHING VERSION SERIES 551 3/2 NC .AIR RETURN
