Reference : SAFX.001.020.055
Catalog Price :
€824.92
Tax excluded 21.00 %
| Body material | GG25 cast iron |
| Sealing | Stainless Steel |
| Type of connection | With flanges |
| Input connection | DN20 |
| Output connection | DN32 |
| GN | 16 |
| Output GN | 10/16 |
| PN | 16 |
| Tare pressure | 5,5 bar |
| Downstream pressure | 16 bar |
| Fluid working Temp | (-)10°C to (+)200°C |
| Specifications | With closed hood |
| Compatibility - fluids | For water, compressed air and steam |
| Customs duty number | 8481-3091 |
| Gross weight (kg) | 7,5 |
| Eclass | 37010000 |
| Country of origin | PL |
| UNSPSC Code | 40140000 |

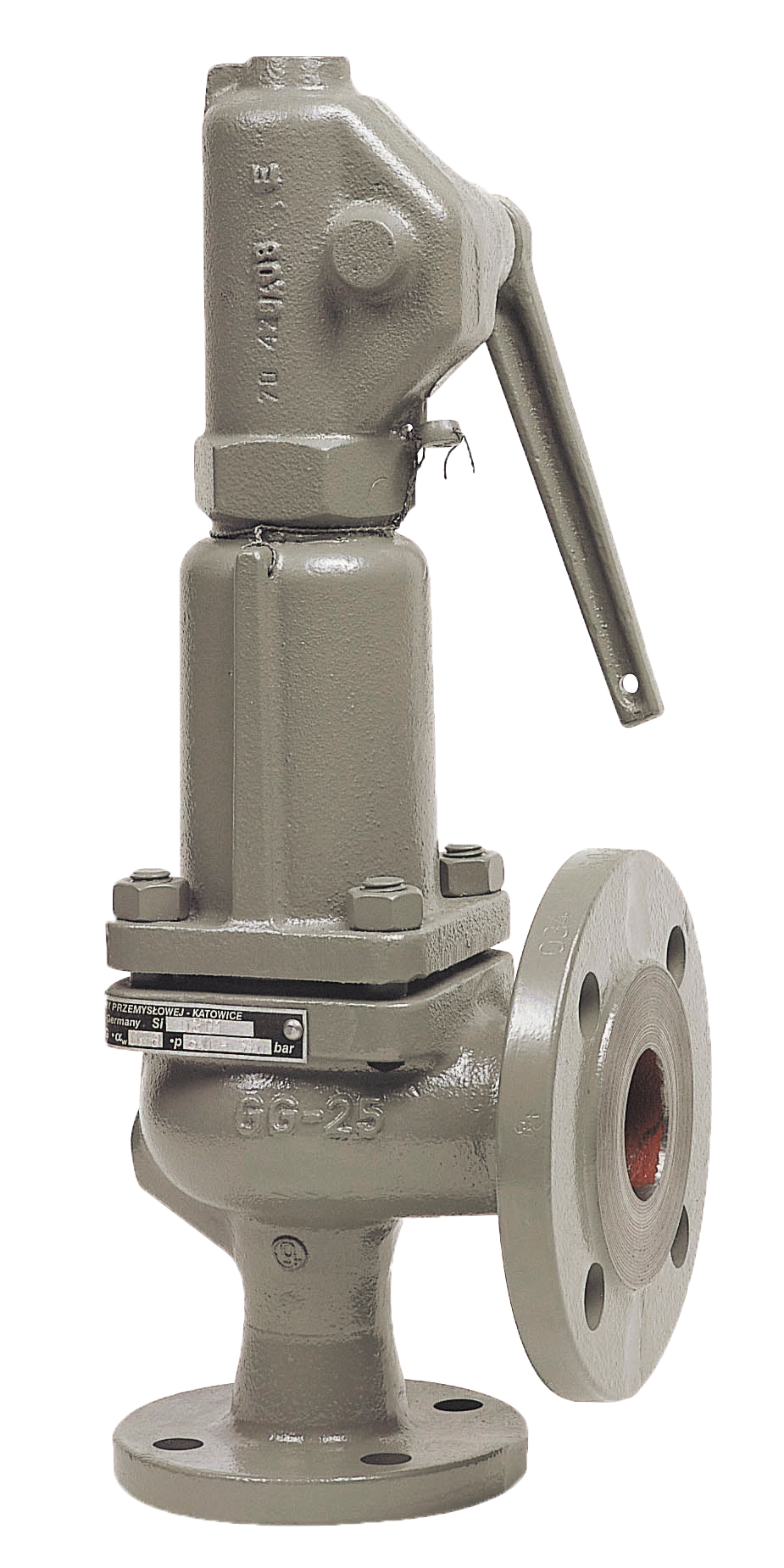

CAST IRON SAFETY V. DN20 4.8-6.3bar PN16 pressure setting Certificate
