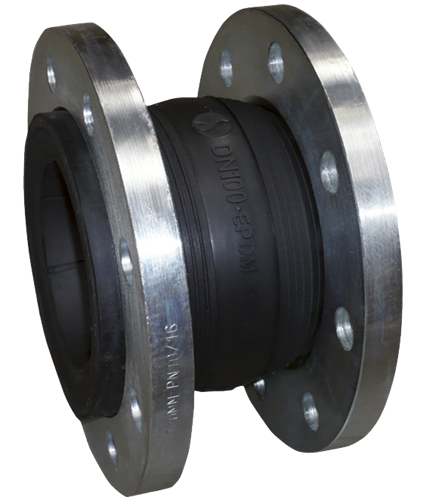

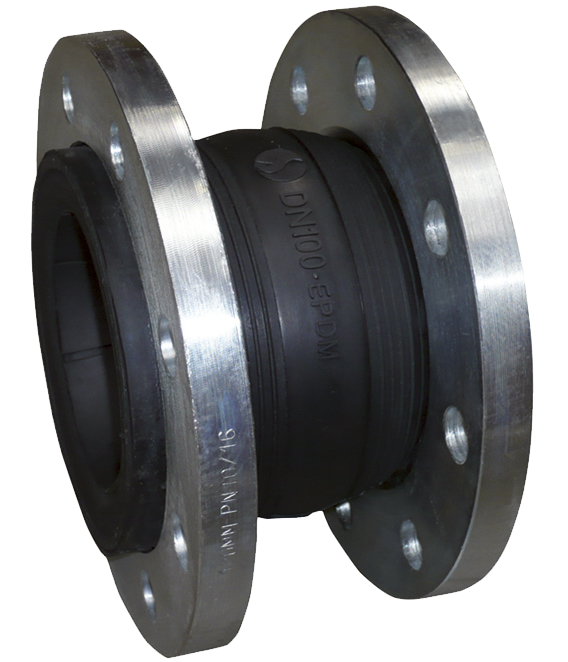

Rubber expansion joint - NBR - DN125 - GN10/16 - PN16 - Length within flanges: 130mm - +100°C

Reference : EJFX.005.125

Catalog Price :

200.22
Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)

-

Stock Belgium (Barchon)

-

Stock Belgium (Chaineux)

Quantity and short lead time
to be confirmed on request
Manufacturer stock Quantity and short lead time
to be confirmed on request
Body material Steel
Sealing NBR
Type of connection With flanges
Diameter of connection DN125
GN 10/16
PN 16
Fluid working Temp (-)10°C to (+)80°C
Specifications Model with distance between flanges: 130mm
Customs duty number 4016-9997
Gross weight (kg) 9,18
Eclass 37210000
Country of origin CN
UNSPSC Code 40140000
Expansion joint :
- DN125
- GN10/16
- PN16
- Working temperature of the fluid : - 10°C to + 80°C
- Pipe and outer casing made of NBR
- Length between flanges: 130mm
- Nylon fabric reinforcement
- Hardened steel retaining ring
- Rotating flanges made of zinc-plated steel
- Vibration and noise absorption
- Linear and angular compression
- Applications: Mineral oils, hydrocarbons, fuel oil
- Available options: gap limiter
