Reference : EJFX.001.100
Catalog Price :
€128.47
Tax excluded 21.00 %
| Body material | Steel |
| Sealing | EPDM |
| Type of connection | With flanges |
| Diameter of connection | DN100 |
| GN | 10/16 |
| PN | 16 |
| Fluid working Temp | (-)10°C to (+)100°C |
| Specifications | Standard model |
| Customs duty number | 4016-9997 |
| Gross weight (kg) | 7,392 |
| Eclass | 37210000 |
| Country of origin | CN |
| UNSPSC Code | 40140000 |

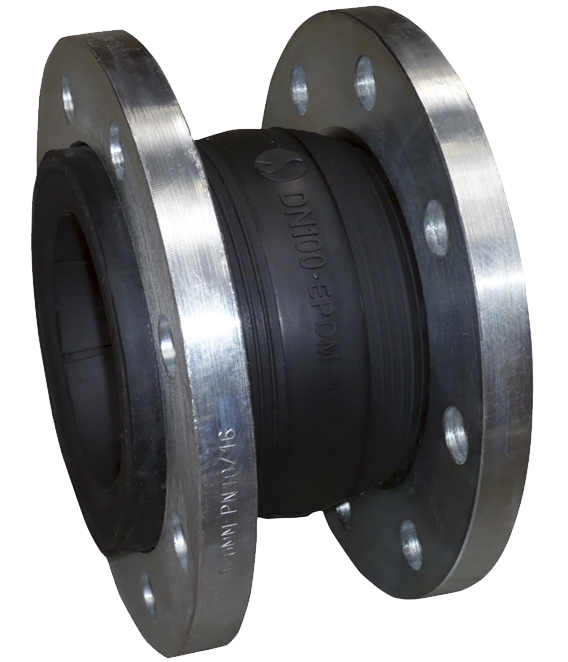

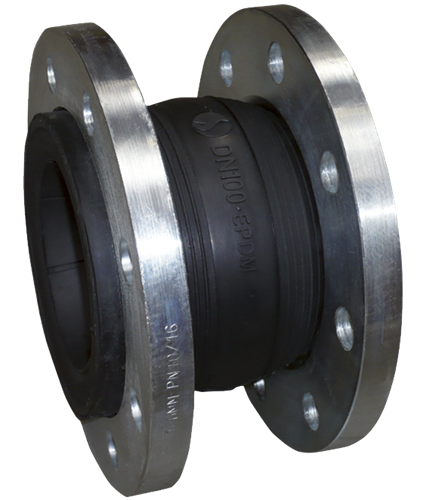

Rubber expansion joint
- DN100
- GN10/16
- PN16
- Working temperature of the fluid : - 10°C to + 100°C
- EPDM pipe and outer cover
- Nylon fabric reinforcement
- Retaining ring in hardened steel
- Rotating flanges in zinc-plated steel
- Vibration and noise absorption
- Linear and angular compression
- Applications: Water supply and distribution networks, heating and air conditioning
- Available options: Gap limiter
