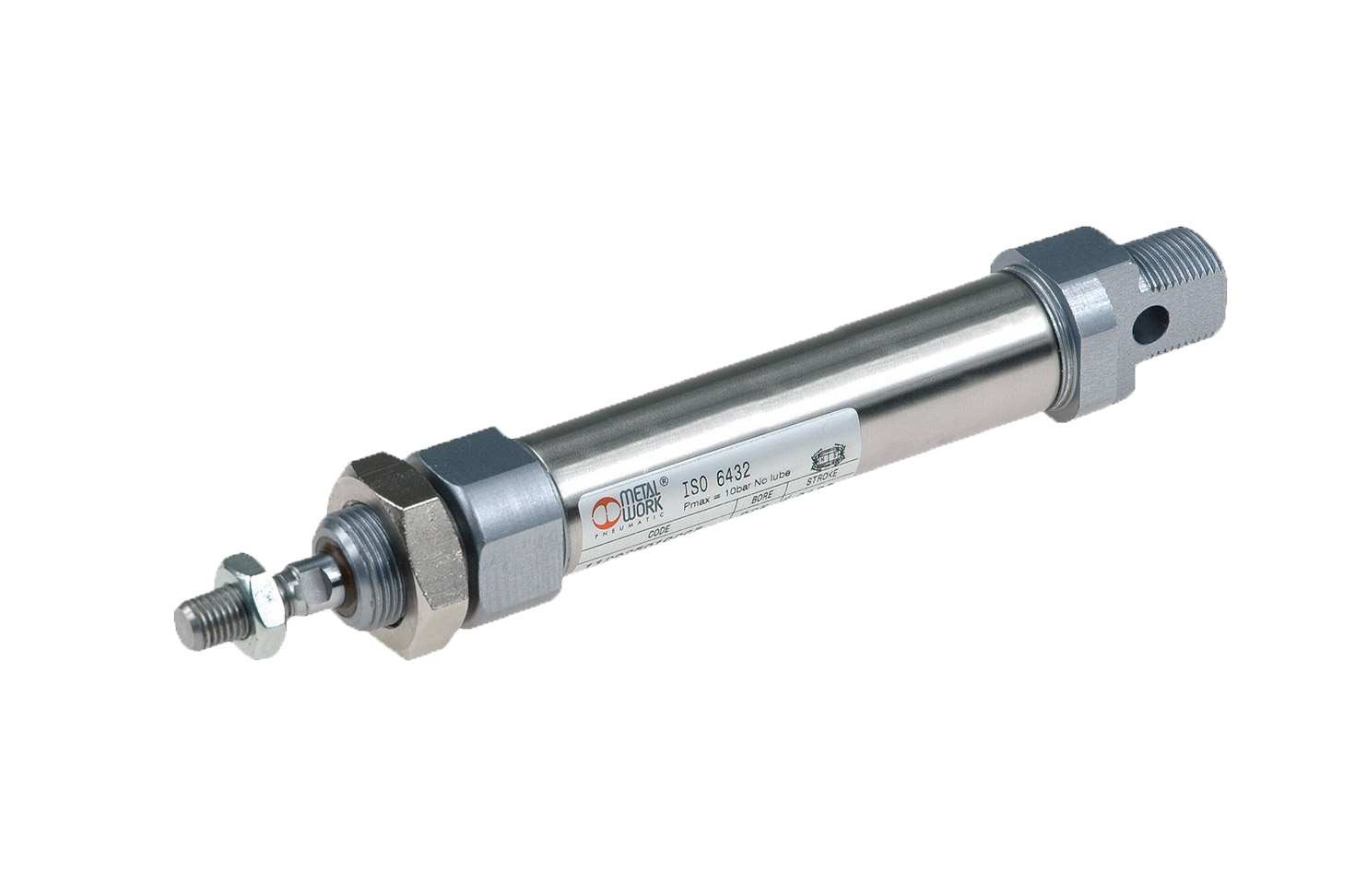

Non contractual picture
Product details Associated products Associated categories

Round cylinder ISO 6432 Full Stainless Steel - Ø 20 - Stroke: 25 - Pressure: 10 bar - Double effet--

Reference : CYLB.04.020.0025

Brand reference : W1800200025

Catalog Price :

€118.78
Tax excluded 21.00 %
Stock Belgique (Liège) -
Stock Belgique (Hainaut) -
Stock Luxembourg (Troisvierges) -
Stock usine Quantity and short lead time
to be confirmed on request
Usual lead time :
4 weeks
Supplier series W180
Standard ISO 6432
Diameter 20 mm
Stroke 25
Specifications Double acting
Body material Stainless Steel
Rod material Stainless Steel
Seal material Polyurethane
Operating pressure 10 bar
Fluid working Temp (-)10°C to (+)80°C
Customs duty number 8412-3100
Gross weight (kg) 300
Eclass 27290000
Country of origin IT
UNSPSC Code 27131700
ST/STEEL CYL MINI 20 X 25

Associated products

EA2025

Foot mounting - EA - Steel - Ø 20/25 mm

Stock : 0
Metal Work
€4.25
AP220

Fork - AP2 - Steel - Ø 20 mm - M8x1,5

Stock > 4
Metal Work
€2.81
MF82025

Front/Rear Flange - MF8 - Steel - Ø 20/25 mm

Stock : 0
Metal Work
€5.31
MR32025X

Locknut - MR3 - Stainless Steel - Ø 20/25 mm - M22x1,5

Stock : 0
€7.16
MR32025

Locknut - MR3 - Steel - Ø 20/25 mm - M22x1,5

Stock : 0
Metal Work
€3.92
P494A0022300A00

Magnetic position detector for t groove profiletube, 10 to 30VDC - PNP - with 2 m PUR cable

Stock > 8
Asco
€58.33
CYLX.01.003

Magnetic position detector, 2-wire with male connector M8, 3-pin and PU cable 0,3m

Stock > 14
Asco
€37.82
CYLX.01.007

Magnetic sensor for T groove version - 10 to 30 VDC - PUR cable 5m 3 wires PNP NO

Stock > 2
Asco
€67.08
CYLX.01.009

Magneto Resistive position detector, for cylinders with T groove, 3 wires, 10 to 30 VDC

Stock > 8
Asco
€64.31
P494AL129600A00

Mounting collar in stainless steel for Tdetectors for round cylinders ø 20/25

Stock : 0
Asco
€10.79
AK20

Piston rod swivel - AK1 - Steel - Ø 20 mm - M8x1,5

Stock : 0
IMI Norgren
€24.51
P494A0021300A00

Reed switch detector for T slot 5 to 120V AC/DC - PUR cable 2meters 2 wires

Stock > 31
Asco
€33.97
P494A0021100A00

Reed switch detector for T slot 5 to 120V AC/DC - PUR cable 5meters 2 wires

Stock > 12
Asco
€40.59
N220

Rod nut - N2 - Steel - Ø 20 mm - M8x1,5

Stock > 4
Metal Work
€1.44
AP620

Swivel head - AP2 - Steel - For cylinders Ø 20 mm - M8 x 1,5

Stock > 9
Aventics (ex Bosch Rexroth)
€26.81
