Reference : SDE-2200
Catalog Price :
€19,854.75
Tax excluded 21.00 %
| Output connection | G3" |
| Power of installed motor (kW) | 5.48 kW |
| Actual flow at 7 bar | 2200 m³/h (±5%) |
| Type of gas | R134a |
| Motor power consumed (kW) | 9.25 |
| Voltage | 400 V 50 Hz three phase |
| Customs duty number | 8418-6900 |
| Gross weight (kg) | 392 |
| Eclass | 36530000 |
| Country of origin | BE |
| UNSPSC Code | 40161500 |

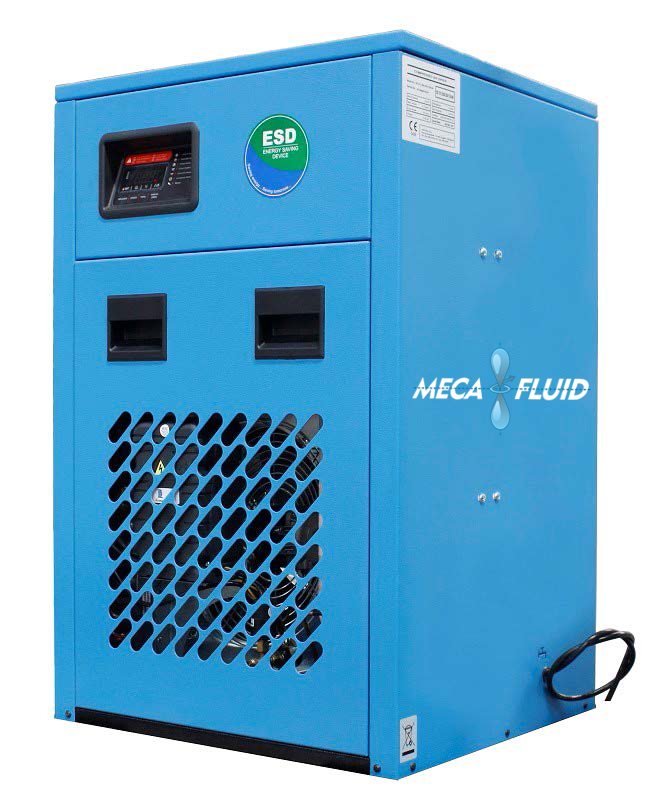

MECA-FLUID air-cooled refrigeration dryer:
- Effective flow rate at 7 bar (T ° incoming air at 35 ° C / T ° ambient air at 25 ° C): 2200 m³ / h
- Air outlet connection: G 3 "
- Drain connection: 1 "pneumatic hose
- Ambient temperature range: from 5 ° C to 50 ° C
- Max inlet temperature: + 60 ° C
- Working pressure: max 16 bar
- Integrated filters GKO-2700M X / Y
- Integrated input filter: 1 µm
- Integrated output filter: 0.01 µm
- Total pressure drop: 150 mbar
- Type of refrigeration gas: R134a
- Quantity of refrigerant: 10 Kg
- Voltage: 400 VAC three-phase
- Total power: 4.58 kW
- Classification of electrical protection (according to IEC): IP54
- Fuses: 25 A (not supplied)
- Condenser air flow: 5000 m³ / h
- Maximum thermal heat rejection at 45 ° C: 16125 W
- Type of compressor in the dryer: spiral
- Integrated timed condensate drain with DigiPro electronic controller
- Sound level: <70 db
- Dew point classification: ISO8573.1 Class 4 (Pressure dew point <= 3 ° C)
- Length: 1163 mm
- Width: 778 mm
- Height: 1725 mm
