Reference : FISS.002.1238
Brand reference : XVRC12G03
Catalog Price :
€21.61
Tax excluded 21.00 %
| Specifications | Cylindrical straight |
| Body material | 316 Stainless Steel |
| Connection ends | Union - Male |
| Diameter of connection | 3/8" |
| Tube external diameter (mm) | 12 mm |
| Operating pressure | (-)0,99 to 20 bar |
| Fluid working Temp | (-)20°C to (+)150°C |
| Compatibility - fluids | For compressed air, water or aggressive fluids |
| Customs duty number | 7307-1990 |
| Gross weight (kg) | 0,04 |
| Eclass | 27290000 |
| Country of origin | IN |
| UNSPSC Code | 27131700 |

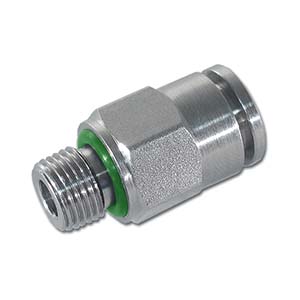

Push-in instantaneous fitting in 316 stainless steel for tubes
- Straight connection
- G 3/8" cylindrical threaded connection according to ISO 228
- For tube with an external diameter of 12mm
- AISI 316 ASTM stainless steel body
- Viton seal
- Operating pressure from -0.99 to 20 bar
- Fluid operating temperature from -20°C to +150°C
- Compatible tubes: Polyethylene, Polyamide, PTFE, FEP
- Use: compressed air, drinking water, food fluids compatible with the materials
- Straight connection
- G 3/8" cylindrical threaded connection according to ISO 228
- For tube with an external diameter of 12mm
- AISI 316 ASTM stainless steel body
- Viton seal
- Operating pressure from -0.99 to 20 bar
- Fluid operating temperature from -20°C to +150°C
- Compatible tubes: Polyethylene, Polyamide, PTFE, FEP
- Use: compressed air, drinking water, food fluids compatible with the materials
