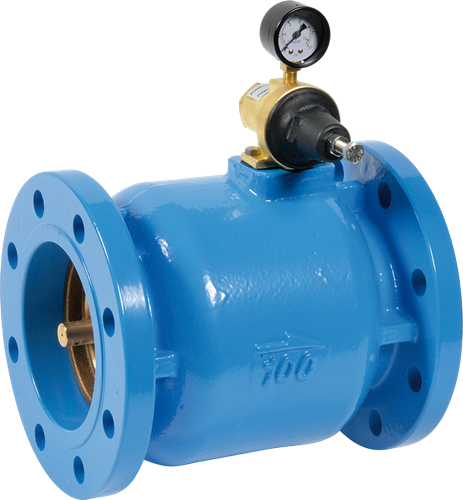

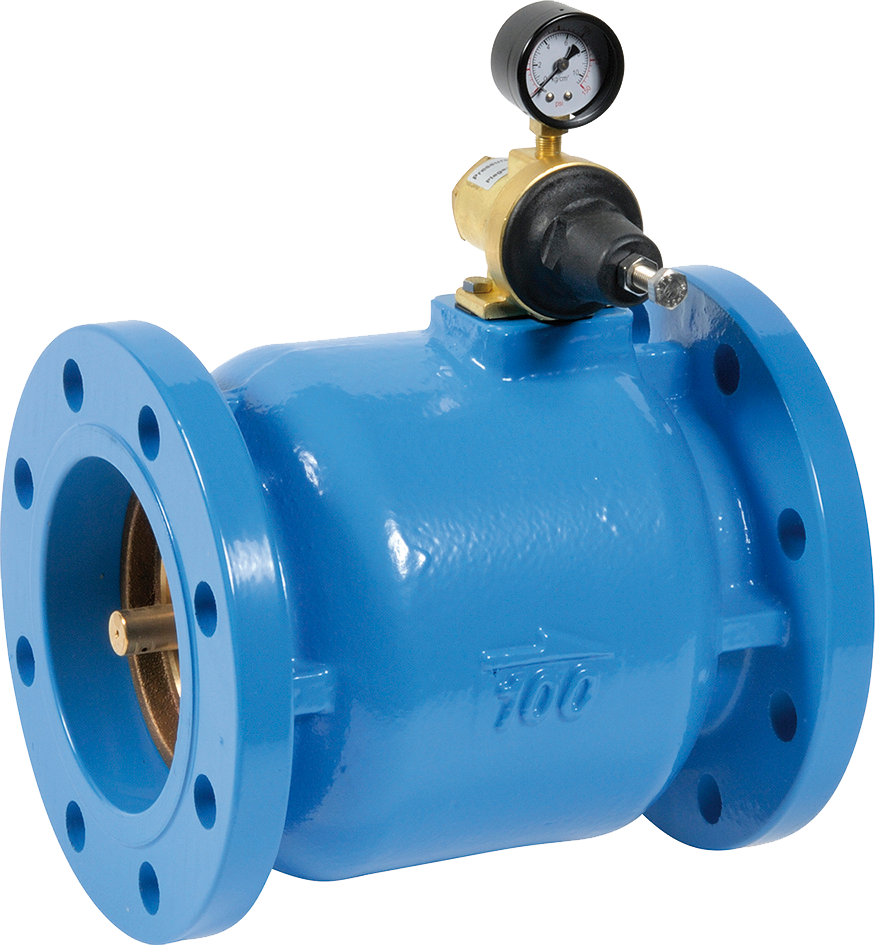

Pressure Relief valve - Cast Iron body - NBR - DN65 - Flanges - GN16 - PN16 - 2 bar - (+)80°C

Name: Pressure Relief valve - Cast Iron body - NBR - DN65 - Flanges - GN16 - PN16 - 2 bar - (+)80°C
SKU: OVFX.001.065.020
Availability: OutOfStock

Reference : OVFX.001.065.020

Price upon request Contact us

Assemblage de composants en stock, nécessite un délai supplémentaire jusqu’à 3 jours ouvrables départ de notre magasin

Stock Luxembourg (Troisvierges)	-
Stock Belgium (Barchon)	-
Stock Belgium (Chaineux)	Quantity and short lead time to be confirmed on request
Manufacturer stock	Quantity and short lead time to be confirmed on request

Usual lead time :
6-10 working days

Body material	Cast iron
Sealing	NBR
Type of connection	With flanges
Input connection	DN65
Output connection	DN65
GN	16
PN	16
Tare pressure	2 bar
Fluid working Temp	(-)10°C to (+)80°C
Operation	Horizontal or vertical mounting with ascending fluid
Compatibility - fluids	For clear water
Gross weight (kg)	0
Eclass	37010000
UNSPSC Code	40140000

Description
Documents

Pressure relief valve - Cast iron body - NBR seals - Flanged inlet DN65 and outlet DN65 - PN16 - GN16 - Set pressure: 2 bar - Horizontal or vertical installation with rising fluid - Fluid operating temperature:(-)10°C to (+)80°C

5272-catalogue méca-fluid (v.3.2019.fr)_page211.pdf
