Reference : OVFX.001.200.025
Price upon request
Contact us
Assemblage de composants en stock, nécessite un délai supplémentaire jusqu’à 3 jours ouvrables départ de notre magasin
| Body material | Cast iron |
| Sealing | NBR |
| Type of connection | With flanges |
| Input connection | DN200 |
| Output connection | DN200 |
| GN | 16 |
| PN | 16 |
| Tare pressure | 2,5 bar |
| Fluid working Temp | (-)10°C to (+)80°C |
| Operation | Horizontal or vertical mounting with ascending fluid |
| Compatibility - fluids | For clear water |
| Gross weight (kg) | 0 |
| Eclass | 37010000 |
| UNSPSC Code | 40140000 |

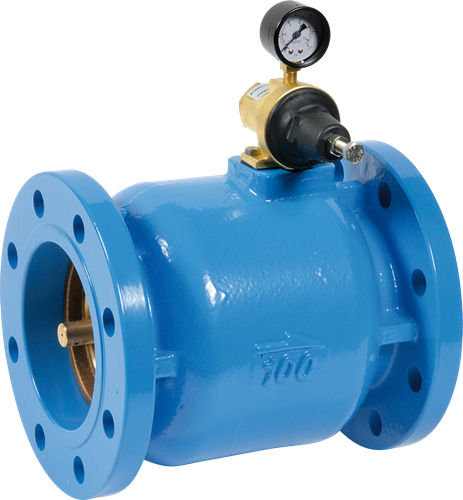

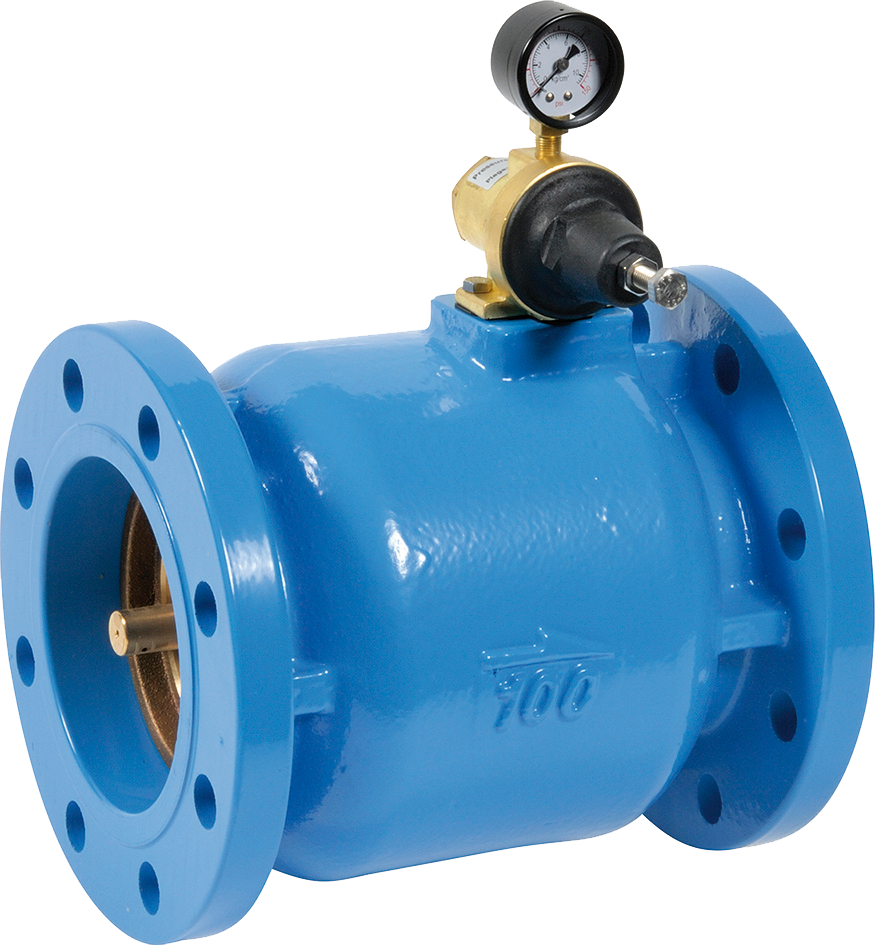

Pressure relief valve - Cast iron body - NBR seals - Flanged inlet DN200 and outlet DN200 - PN16 - GN16 - Set pressure: 2,5 bar - Horizontal or vertical installation with rising fluid - Fluid operating temperature:(-)10°C to (+)80°C
