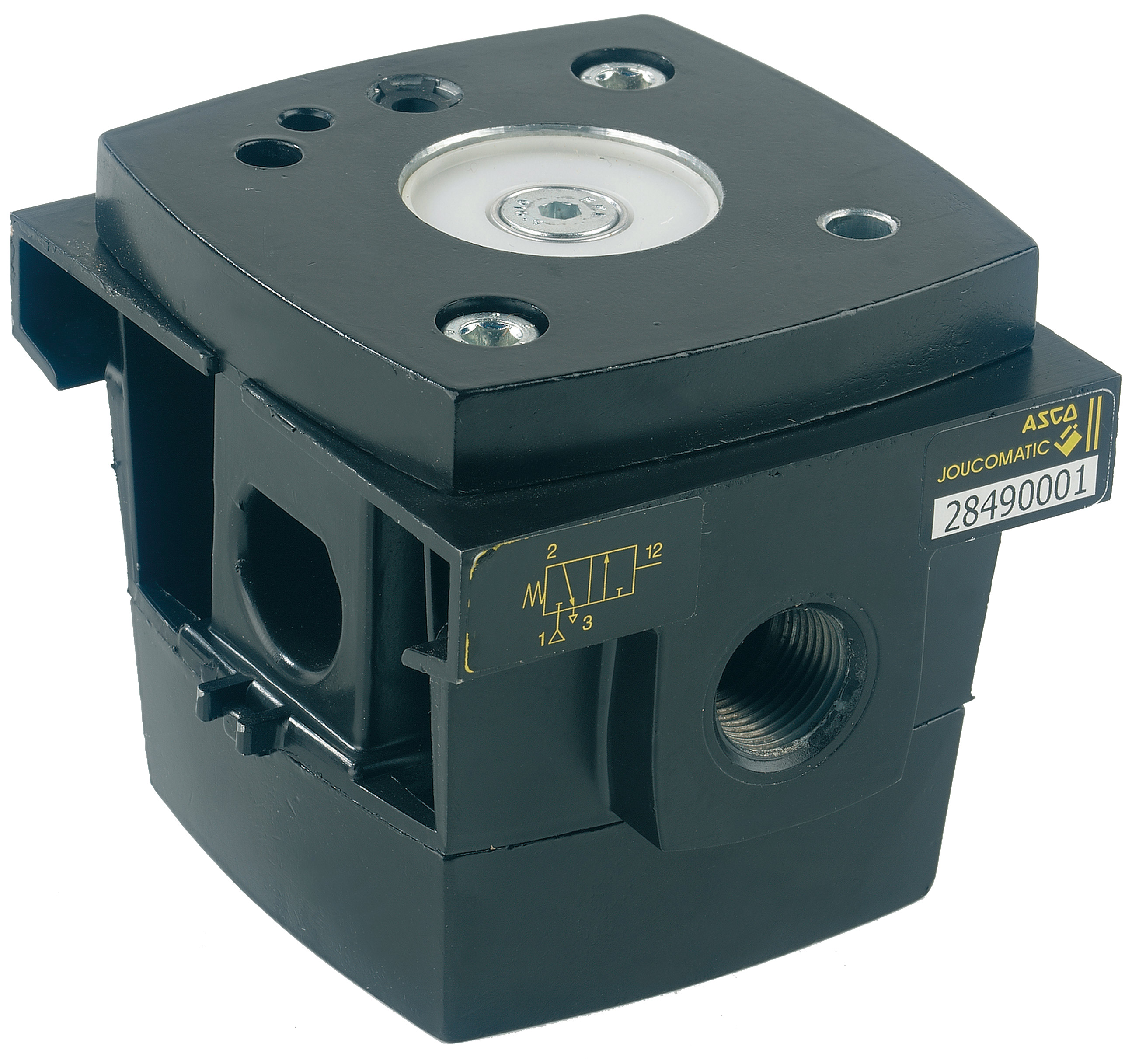

Poppet valve - 3/2 NC - G3/8" - Air/solenoid air operated - Spring return - With gaskets

Reference : 28490001

Catalog Price :

€465.62

Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)	2
Stock Belgium (Barchon)	-
Stock Belgium (Chaineux)	Quantity and short lead time to be confirmed on request
Manufacturer stock	Quantity and short lead time to be confirmed on request

Function	3/2 Normally Closed
Operated	Air operated or with pilot
Return	Spring
Specifications	In-line
Body material	Zamak
Joints	With
Sealing	NBR and PU
Diameter of connection	3/8"
Flow at 6 bar (ANR)	4500
Operating pressure	2 to 12 bar
Control pressure	2 to 10 bar (pilote190) - 2 to 12 bar (pilote 192)
Fluid working Temp	(-)10°C to (+)60°C
Compatibility - fluids	Air or neutral gas, filtered, lubricated or not
Customs duty number	8481-2090
Gross weight (kg)	1,305
Eclass	27290000
Country of origin	FR
UNSPSC Code	27131700

Description
Documents

TAPPED POPPET VALVE 3/2 VALVE BODY SUBASSEMBLY 3/2 NC SERIES 284 TAPPED G 3/8

10385-catalogue méca-fluid (v.3.2019.fr)_page337.pdf

Manufacturer data sheet
