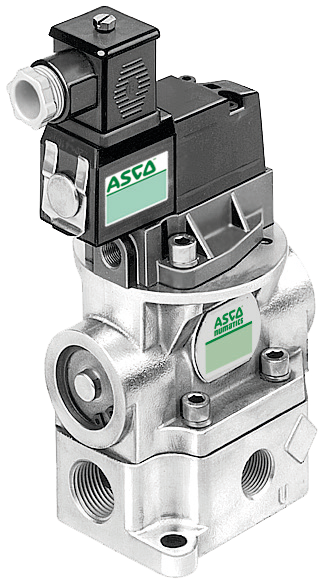

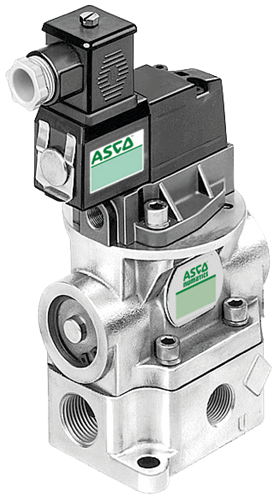

Poppet valve - 3/2 NC - G1"1/2 - Solenoid air operated - Spring return - With gaskets

Reference : 26890298

Price upon request Contact us

Stock Luxembourg (Troisvierges)	-
Stock Belgium (Barchon)	-
Stock Belgium (Chaineux)	Quantity and short lead time to be confirmed on request
Manufacturer stock	Quantity and short lead time to be confirmed on request

Usual lead time :
8 weeks

Function	3/2 Normally Closed
Operated	With pilot
Return	Spring
Specifications	On subbase
Body material	Light allow
Joints	With
Sealing	NBR
Diameter of connection	1"1/2
Flow at 6 bar (ANR)	31500
Operating pressure	2 to 16 bar
Control pressure	2 to 10 bar (pilote190) - 2 to 12 bar (pilote 192)
Fluid working Temp	(-)10°C to (+)60°C
Compatibility - fluids	Air or neutral gas, filtered, lubricated or not
Customs duty number	8481-2090
Gross weight (kg)	3,095
Eclass	27290000
Country of origin	FR
UNSPSC Code	27131700

Description
Documents

POPPET VALVE READY FOR SOLENOID 3/2 NC 268 (DP) SUBBASE MOUNTED G 1 1/2 REFERENCE : G/DM/DP 307/O

83095-catalogue méca-fluid (v.3.2019.fr)_page339.pdf
