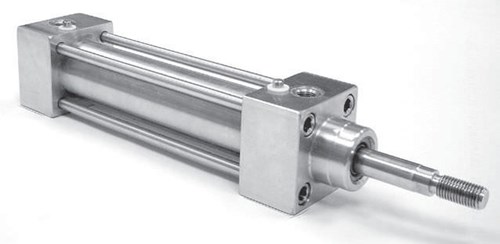

Piston rod cylinder S.S.304 ISO15552 - Ø125 - Stke: 500 - 10 bar - Double acting - Piston rod: S.S.

Reference : CYLA.08.125.0500

Brand reference : SG125/050000000

Price upon request Contact us

Stock Luxembourg (Troisvierges)	-
Stock Belgium	-
Stock Belgique bis	Quantity and short lead time to be confirmed on request
Manufacturer stock	Quantity and short lead time to be confirmed on request

Usual lead time :
11-15 working days

Supplier series	S
Standard	ISO 15552
Diameter	125 mm
Stroke	500
Specifications	Double acting
Body material	304 Stainless Steel
Rod material	Stainless Steel
Piston seal material	Polyurethane and NBR
Operating pressure	10 bar
Fluid working Temp	(-)20°C to (+)80°C
Gross weight (kg)	0
Eclass	27290000
UNSPSC Code	27131700

Documents

8654-vérins normalisés iso 15552.pdf

Manufacturer data sheet
