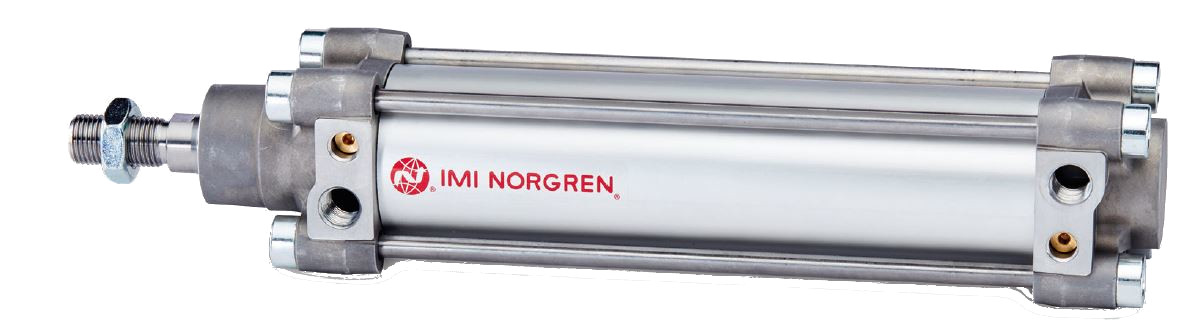

Piston rod cylinder alum. ISO 15552 - Ø200 - Stroke: 200 - 16 bar - Double acting - Piston rod: S.S.

Reference : CYLA.06.200.0200

Brand reference : RA/8200/M/200

Catalog Price :

€1,490.24

Tax excluded 21.00 %

Stock Belgique (Liège)	-
Stock Belgique (Hainaut)	-
Stock Luxembourg (Troisvierges)	-
Stock usine	Quantity and short lead time to be confirmed on request

Usual lead time :
6-10 working days

Supplier series	RA/8000/M
Standard	ISO 15552
Diameter	200 mm
Stroke	200
Specifications	Double acting
Body material	Anodized aluminum
Rod material	Stainless Steel
Seal material	Nitrile
Operating pressure	16 bar
Fluid working Temp	(-)10°C to (+)80°C
Customs duty number	0
Gross weight (kg)	0
Eclass	27290000
UNSPSC Code	27131700

Description
Documents

ISO/VDMA CYLINDER

8287-fr1-084.pdf

Associated products

P494AP129200A00

Clamp sensor for T for rods cylinders d = 125/160/200

Stock > 3

Asco

AB7200

Counter Hinge - AB7 - Aluminum - For cylinders Ø200

Stock : 0

IMI Norgren

MP2200

Female Hinge - MP2 - Stainless Steel - for cylinders Ø 200 mm - axe Ø30mm

Stock : 0

Metal Work

CYLX.01.010

Fixation bracket for cylinders Ø 32 to Ø 200

Stock : 0

IMI Norgren

AP2160200

Fork - AP2 - Steel - Ø 160/200 mm - M36x2

Stock > 4

Metal Work

MF1200

Front/Rear Flange - MF1 - Steel - Ø 200 mm

Stock : 0

IMI Norgren

M/50/LSU/CP

ILS Reed switch - with LED - 0.3 meters - M8 plug

Stock : 0

IMI Norgren

MS1200

Low feet - MS1 - Steel - Ø 200 mm

Stock : 0

Aventics (ex Bosch Rexroth)

CYLX.01.003

Magnetic position detector, 2-wire with male connector M8, 3-pin and PU cable 0,3m

Stock > 14

Asco

CYLX.01.007

Magnetic sensor for T groove version - 10 to 30 VDC - PUR cable 5m 3 wires PNP NO

Stock > 2

Asco

M/50/EAP/2V

Magneto Resistive position detector, for cylinders with T groove, 3 wires, 10 to 30 VDC

Stock : 0

IMI Norgren

CYLX.01.009

Magneto Resistive position detector, for cylinders with T groove, 3 wires, 10 to 30 VDC

Stock > 8

Asco

MP4200

Male Hinge - MP4 - Reinforced aluminum - Ø 200 mm

Stock : 0

Metal Work

SS200

Narrow hinge - SS1 - Aluminum alloy - Ø 200 mm

Stock : 0

IMI Norgren

M/50/EAP/5V

NORGREN position detector - PNP with LED - 5 meters - PVC cable

Stock : 0

IMI Norgren

M/50/EAP/CP

NORGREN Solid state switch - PNP with LED - M8 connector

Stock : 0

IMI Norgren

AK160200

Piston rod swivel - AK1 - Steel - Ø 160/200 mm - M36x2

Stock : 0

IMI Norgren

AB6200

Rear clevis - AB6 - Aluminum - For cylinders Ø 200 mm - axe Ø35mm

Stock : 0

Aventics (ex Bosch Rexroth)

MP6200

Rear eye - MP6 - Aluminum - For cylinders Ø 200 mm

Stock : 0

Aventics (ex Bosch Rexroth)

M/50/LSU/2V

Reed switch - 2 meters - NO - IP66 - PVC cable

Stock : 0

IMI Norgren

M/50/LSU/5V

Reed switch - 5 meters - NO - IP66 - PVC cable

Stock : 0

IMI Norgren

P494A0021100A00

Reed switch detector for T slot 5 to 120V AC/DC - PUR cable 5meters 2 wires

Stock > 12

Asco

AP6160200

Swivel head - AP2 - Steel - For cylinders Ø 160/200 mm - M36 x 2

Stock > 2

Aventics (ex Bosch Rexroth)

AB5200

Swivel hinge - AB5 - Cast iron - For cylinders Ø 200 mm

Stock : 0

Aventics (ex Bosch Rexroth)

ZS 3200

T-groove (5mm) cylinder switch, 2-wire Reed sensor - NO - 10-230VAC / 10-170VDC - 150mA/10W - 3m

Stock > 2
