Non contractual picture
Associated products Associated categories

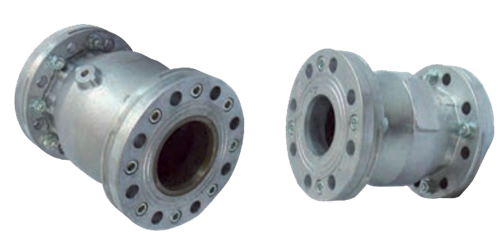

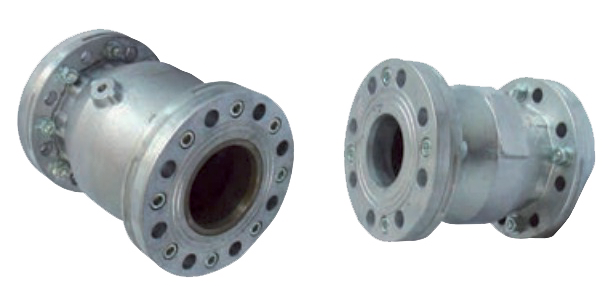

Pinch valve - Aluminum body - Natural Rubber - DN125 - PN6 - Pneumatic - Normally Open - (+)80°C

Reference : PIFP.001.125

Catalog Price :

€772.63
Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)

 -

Stock Belgium (Barchon)

 -

Stock Belgium (Chaineux)

Quantity and short lead time
to be confirmed on request
Manufacturer stock Quantity and short lead time
to be confirmed on request
Usual lead time :
1-5 working days
Body material Aluminum
Sealing Natural gum
Type of connection With flanges
Diameter of connection DN125
GN 10
PN 6
Control pressure Maximum 5 bar
Fluid working Temp (-)10°C to (+)80°C
Operated Air operated NO
Compatibility - fluids For pharmaceutical industry, ceramics, glass, plastics, pigments and aggregates, dust removal, dosing, weighing and tanneries
Customs duty number 8481-8081
Gross weight (kg) 12,1
Eclass 37010000
UNSPSC Code 40140000

Associated products

PFAX.009.125

Blind flange - DN 125 - PN16 - GN10/16 - 316L Stainless Steel body

Stock : 0
€216.76
PFAX.005.125

Blind Flange - DN 125 - PN16 - GN10/16 - Steel body

Stock > 1
€34.57
VAAX.002.125

Graphite Gasket for Flange DN125 PN10/16 - Max pressure 120 bar - Max temperature +450°C

Stock > 29
€8.40
KTAX.002.M16070

Screw kit - Stainless Steel A2 - For Flanges assembly GN10/16 - DN125

Stock > 9
€25.89
VAAX.001.125

Universal Gasket for Flange DN125 - PN10/16 - Thickness: 2mm - Max 150°C

Stock > 17
€7.58
PFAX.007.125

Weld Flat Flange - DN 125 - PN10 - GN10/16 - 316L Stainless Steel body

Stock > 8
€203.00
PFAX.003.125

Weld Flat Flange - Steel body - DIN 2576 - DN 125 / Ø139,7 - PN10 - GN10/16

Stock : 0
€23.70
PFAX.008.125

Weld Neck Flange - DN 125 - PN16 - GN10/16 - 316L Stainless Steel body

Stock : 0
€166.24
PFAX.004.125

Weld Stub Flange - Steel body - DIN 2633 - DN 125 / Ø139,7 - PN16 - GN10/16

Stock > 1
€31.93
