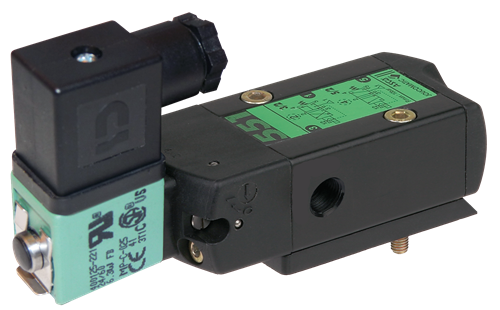

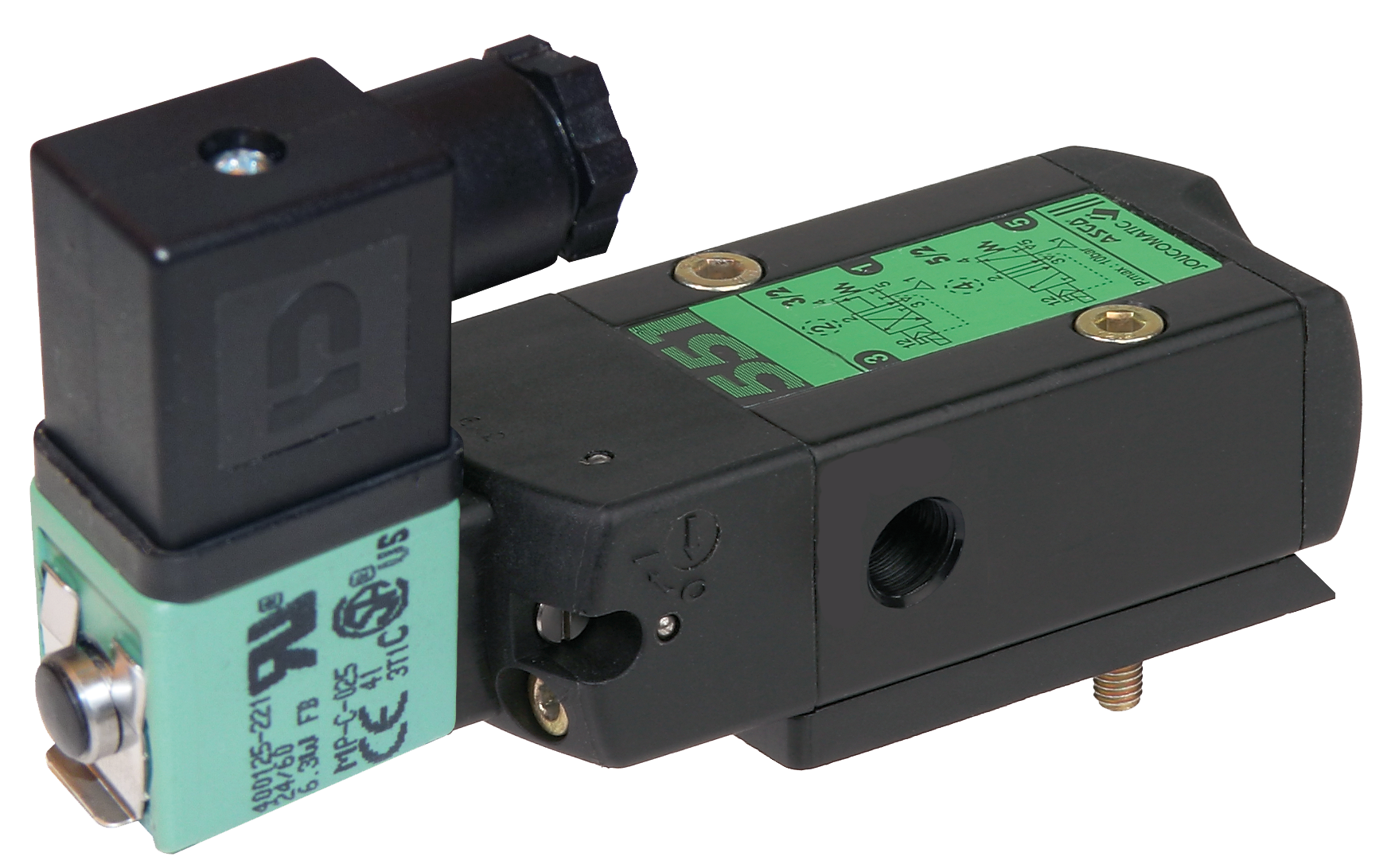

NAMUR Spool valve Serie 551 - Solenoid air operated - 3/2 or 5/2 - NC - 230/50-60

Reference : SCG551A001MS.230/50

Catalog Price :

150.00
Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)

35

Stock Belgium (Barchon)

6

Stock Belgium (Chaineux)

Quantity and short lead time
to be confirmed on request
Manufacturer stock Quantity and short lead time
to be confirmed on request
Function 3/2 normally closed or 5/2 Monostable
Operated With pilot
Return Spring
Body material Anodized aluminum black
Joints With
Diameter of connection 1/4"
Voltage 230/50
Flow at 6 bar (ANR) 700
Operating pressure 2 to 10 bar
Control pressure 2 to 10 bar
Fluid working Temp (-)25°C to (+)60°C
Compatibility - fluids Air or neutral gas, filtered, lubricated or not
Customs duty number 8481-2090
Gross weight (kg) 0,378
Eclass 27220000
Country of origin PL
UNSPSC Code 31251500
SPOOL VALVE 551 NAMUR 3/2 - 5/2 SPRING RETURN WITH MANUAL OVERRIDE COMPLETE REFERENCE : SC G551A001 MS 230V 50-60Hz
