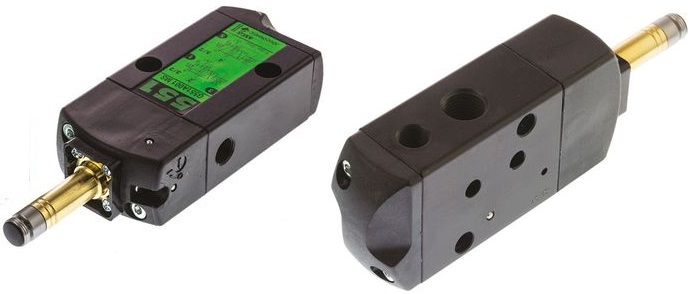

NAMUR spool valve (no coil) - 3/2 NC / 5/2 Mono - G1/4" - Solenoid Air operated - Spring return

Reference : SCG551A001MS.AC/DC

Catalog Price :

131.93
Tax excluded 21.00 %
Stock Belgique (Liège) 18
Stock Belgique (Hainaut) -
Stock Luxembourg (Troisvierges) 37
Stock usine Quantity and short lead time
to be confirmed on request
Function 3/2 normally closed or 5/2 Monostable
Operated With pilot
Return Spring
Body material Anodized aluminum black
Joints With
Diameter of connection 1/4"
Voltage AC/DC - Body only
Flow at 6 bar (ANR) 700
Operating pressure 2 to 10 bar
Control pressure 2 to 10 bar
Fluid working Temp (-)25°C to (+)60°C
Compatibility - fluids Air or neutral gas, filtered, lubricated or not
Customs duty number 8481-8059
Gross weight (kg) 0,308
Eclass 27220000
Country of origin FR
UNSPSC Code 31251500
SPOOL VALVE 551 NAMUR 3/2 - 5/2 SPRING RETURN WITH MANUAL OVERRIDE WITHOUT COIL REFERENCE : G551A001 MS Y000
