Reference : G551A102
Catalog Price :
€185.10
Tax excluded 21.00 %
| Function | 3/2 normally closed or 5/2 Bistable |
| Operated | Air operated |
| Return | Pneumatic |
| Body material | Anodized aluminum black |
| Joints | With |
| Diameter of connection | 1/4" |
| Flow at 6 bar (ANR) | 700 |
| Operating pressure | 0 to 10 bar |
| Control pressure | 2 to 10 bar |
| Fluid working Temp | (-)25°C to (+)60°C |
| Compatibility - fluids | Air or neutral gas, filtered, lubricated or not |
| Customs duty number | 8481-8059 |
| Gross weight (kg) | 0,436 |
| Eclass | 27290000 |
| Country of origin | PL |
| UNSPSC Code | 27131700 |

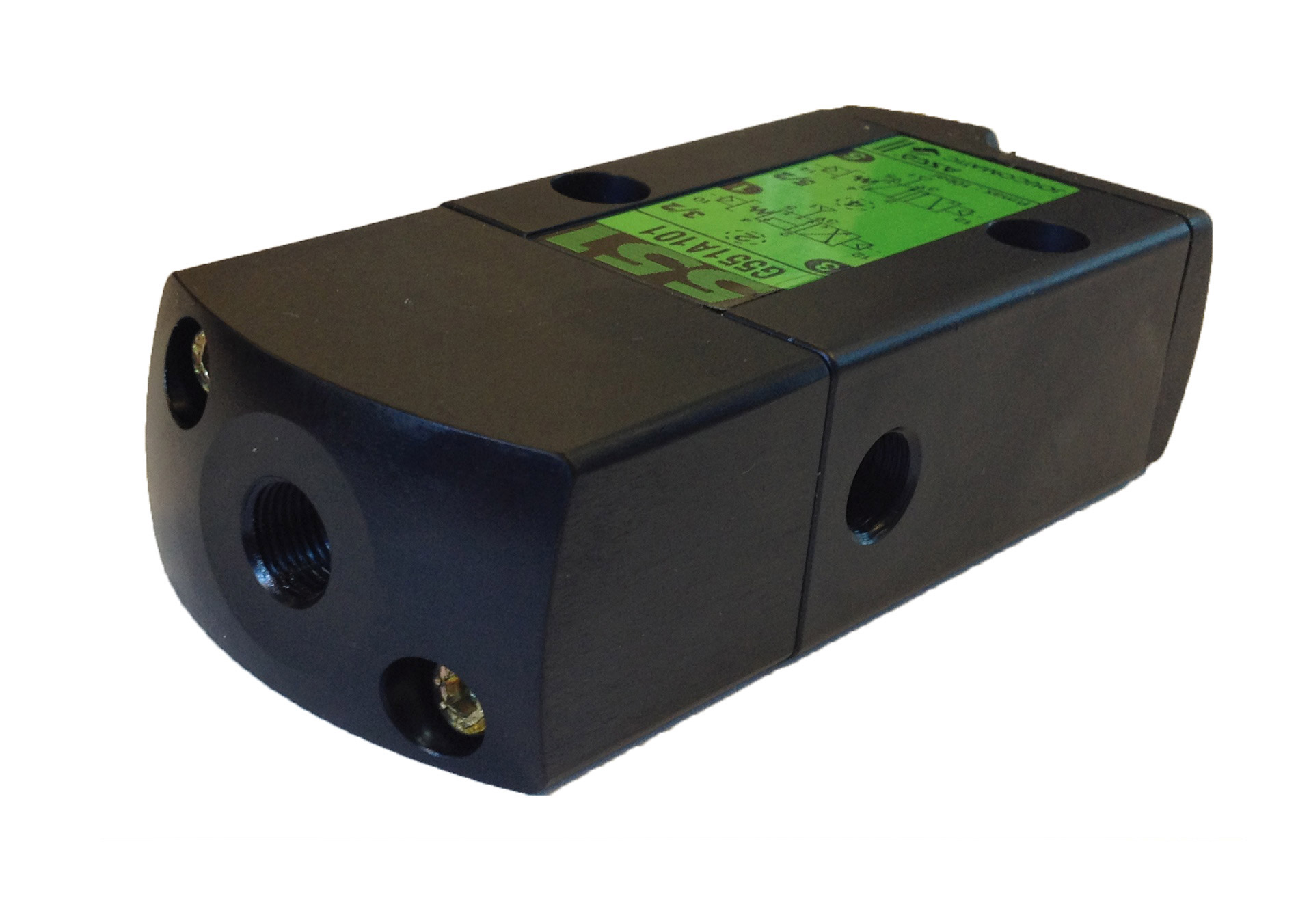

SPOOL VALVE 551 NAMUR 3/2 - 5/2 WITHOUT EXHAUST REDUCER BISTABLE REFERENCE : G551A102
