Reference : EJFX.006.150
Brand reference : 2835E 14
Catalog Price :
€420.62
Tax excluded 21.00 %
| Body material | Steel |
| Sealing | 304 Stainless Steel |
| Type of connection | With flanges |
| Diameter of connection | DN150 |
| GN | 16 |
| PN | 16 |
| Fluid working Temp | (-)40°C to (+)300°C |
| Specifications | Standard model |
| Customs duty number | 8481-8081 |
| Gross weight (kg) | 26 |
| Eclass | 37210000 |
| Country of origin | ES |
| UNSPSC Code | 40140000 |

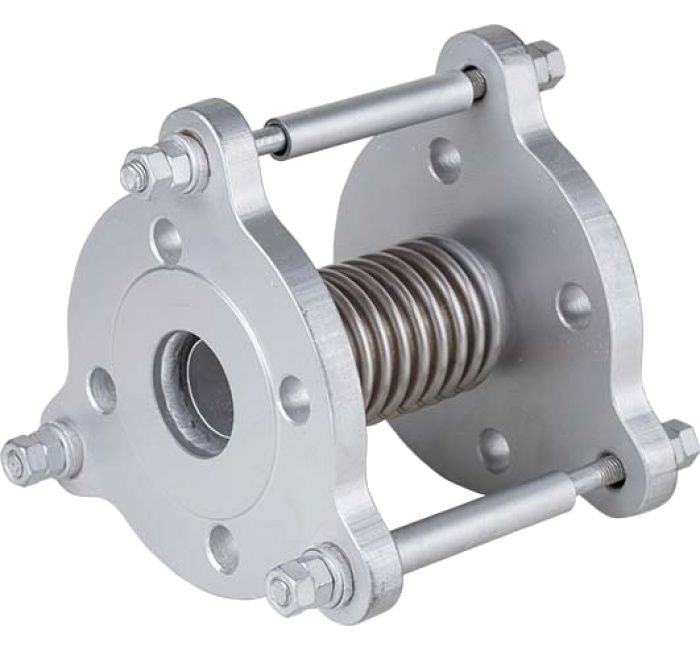

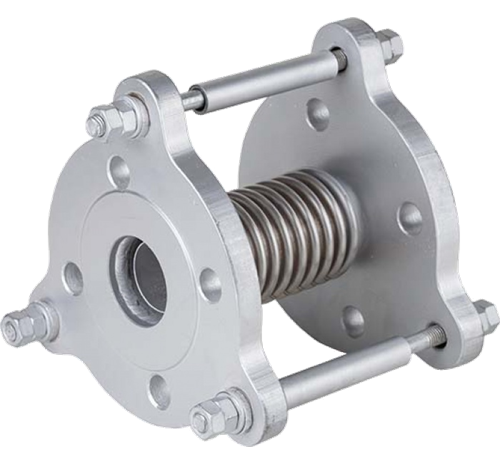

Metal expansion joint
- DN 150
- Flange connection according to EN 1092 PN 16
- Maximum operating pressure 16 bar
- Fluid temperature range -40°C to +300°C
- Carbon steel flanges
- AISI 304 stainless steel bellows and inner liner
- Excessive movement limiting tie rods in carbon steel
- Unidirectional flow, respect the direction of flow indicated on the body by an arrow
- Absorption of vibrations and noise
- Axial compensation
- Applications: water supply and distribution networks, heating and air conditioning, mineral oils, hydrocarbons, fuel oil
- DN 150
- Flange connection according to EN 1092 PN 16
- Maximum operating pressure 16 bar
- Fluid temperature range -40°C to +300°C
- Carbon steel flanges
- AISI 304 stainless steel bellows and inner liner
- Excessive movement limiting tie rods in carbon steel
- Unidirectional flow, respect the direction of flow indicated on the body by an arrow
- Absorption of vibrations and noise
- Axial compensation
- Applications: water supply and distribution networks, heating and air conditioning, mineral oils, hydrocarbons, fuel oil
