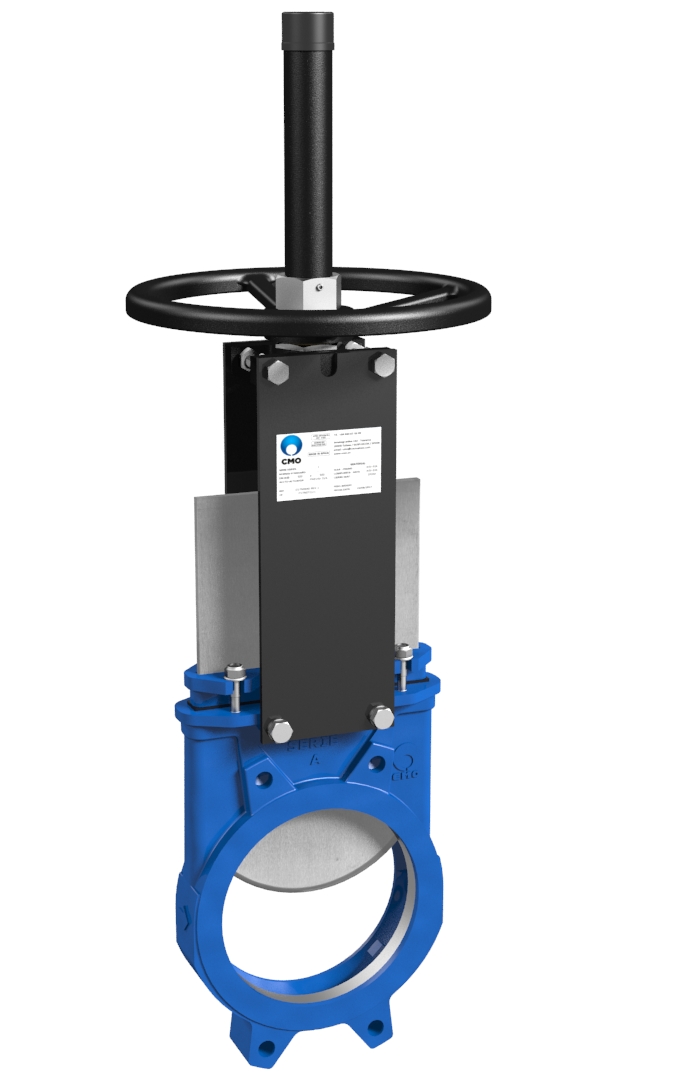

Knife Gate valve - GGG50 Cast Iron - NBR - DN80 - Wafer GN10 - PN10 - Unidir. - +80°C - Manual wheel

Reference : KNWM.016.080

Catalog Price :

291.23
Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)

1

Stock Belgium (Barchon)

1

Stock Belgium (Chaineux)

Quantity and short lead time
to be confirmed on request
Manufacturer stock Quantity and short lead time
to be confirmed on request
Body material GGG50 cast iron
Sealing NBR
Type of connection Wafer
Diameter of connection DN80
GN 10
PN 10
Fluid working Temp (-)10°C to (+)80°C
Operated Manual by handwheel
Specifications Unidirectional
Compatibility - fluids For chemical industry, food industry, cement factories, water, wastewater, pulp, powders
Customs duty number 8481-8061
Gross weight (kg) 0
Eclass 37010000
Country of origin ES
UNSPSC Code 40140000
Knife gate valve:
- Manually operated by handwheel
- DN 80
- Wafer connection between GN10 ISO 5208 flanges
- GGG50 cast iron body
- 304 stainless steel gate
- NBR sealing
- PTFE braided stuffing box packing
- Non-rotating stainless steel rising stem
- 316 stainless steel hoop
- Cast iron stuffing box gland
- Non-rising cast iron handwheel
- Unidirectional type
- Maximum operating pressure: 10 bar
- Fluid operating temperature: -10°C to +80°C
- Valve body thickness 50 mm
