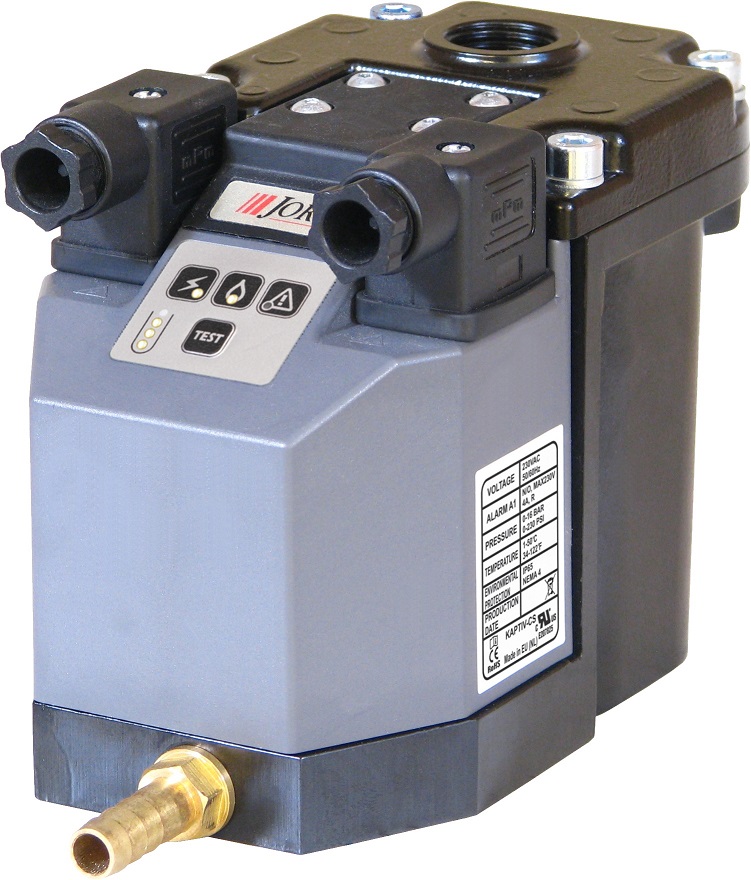

KAPTIV-CS Electronic zero air loss drain
- Maximum compressor capacity: 100 m³/min
- Min./max. working pressure : 0 to 16 bar
- Valve type: 2/2 direct operated
- Passage hole: 4mm
- FPM valve seal
- 1/2" BSP inlet connection
- Height of connections: 11cm / 7.5cm / 1.5cm
- 1/4" BSP outlet connection
- Fluid temperature range from +1°C to +50°C
- Ambient temperature range from +1°C to +50°C
- Supply voltage: 230V 50Hz
- Electrical connection by DIN 43650-B connector
- Alarm contact A3, normally open (closed if in alarm mode), LED on the trap is
disabled if on and enabled if in alarm mode
- Cleanable valve
- With test button
- Ingress protection: IP65 (NEMA4)
- Integrated sieve
- Corrosion resistant aluminum body
