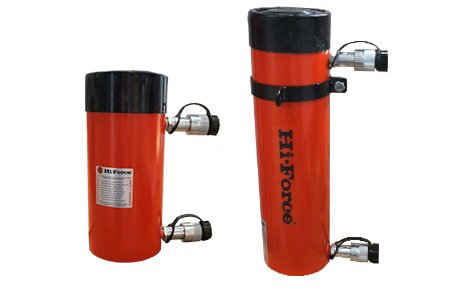

Hydraulic cylinder HI-FORCE - HDA - Double acting - Capacity: 152Tons - Stroke: 305mm - Diam: 210mm

Name: Hydraulic cylinder HI-FORCE - HDA - Double acting - Capacity: 152Tons - Stroke: 305mm - Diam: 210mm
Brand: Hi-Force
SKU: HDA15012
Price: 5.192.00 EUR
Availability: OutOfStock

Reference : HDA15012

Catalog Price :

€5,192.00

Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)	-
Stock Belgium (Barchon)	-
Stock Belgium (Chaineux)	Quantity and short lead time to be confirmed on request
Manufacturer stock	Quantity and short lead time to be confirmed on request

Usual lead time :
6-10 working days

Supplier series	HDA
Stroke	305 mm
Operation	Double effet
Lifting capacity	152 T
Traction capacity	79 T
Gross weight (kg)	0
Eclass	27300000
UNSPSC Code	27121600

Description
Documents

Hydraulic cylinder HI-FORCE Serie HDA :
- Function : Double acting
- Push capacity : 152 Tons
- Pull capacity : 79 Tons
- Stroke : 305 mm
- Diameter : 210 mm
- Height (closed) : 463 mm
- Max working pressure : 700 Bar
