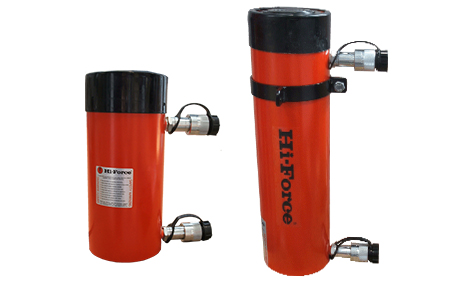

Hydraulic cylinder HI-FORCE - HDA - Double acting - Capacity: 109Tons - Stroke: 330mm - Diam: 185mm

Name: Hydraulic cylinder HI-FORCE - HDA - Double acting - Capacity: 109Tons - Stroke: 330mm - Diam: 185mm
Brand: Hi-Force
SKU: HDA10013
Price: 4.135.00 EUR
Availability: OutOfStock

Reference : HDA10013

Catalog Price :

€4,135.00

Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)	-
Stock Belgium (Barchon)	-
Stock Belgium (Chaineux)	Quantity and short lead time to be confirmed on request
Manufacturer stock	Quantity and short lead time to be confirmed on request

Usual lead time :
6-10 working days

Supplier series	HDA
Stroke	330 mm
Operation	Double effet
Lifting capacity	109 T
Traction capacity	36 T
Gross weight (kg)	0
Eclass	27300000
UNSPSC Code	27121600

Description
Documents

Hydraulic cylinder HI-FORCE Serie HDA :
- Function : Double acting
- Push capacity : 109 Tons
- Pull capacity : 36 Tons
- Stroke : 330 mm
- Diameter : 185 mm
- Height (closed) : 482 mm
- Max working pressure : 700 Bar
