Reference : E298B06K0VA0000
Catalog Price :
€1,263.72
Tax excluded 21.00 %
| Body material | 304 Stainless Steel |
| Sealing | Peek |
| Type of connection | Threaded Female |
| Diameter of connection | 1''1/4 |
| PN | 40 |
| Control pressure | 0 to 10 bar |
| Fluid working Temp | (-)10°C to (+)233°C |
| Operated | NC single-acting air operated |
| Control head | 150 mm |
| Specifications | 2-way - Without bellows |
| Compatibility - fluids | For steam applications |
| Customs duty number | 8481-2090 |
| Gross weight (kg) | 0 |
| Eclass | 27290000 |
| Country of origin | FR |
| UNSPSC Code | 27131700 |

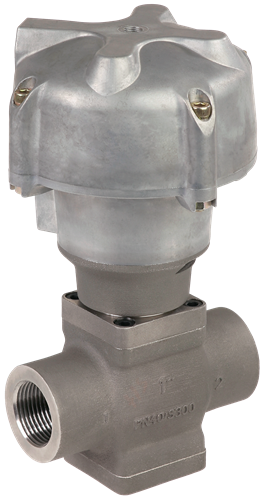

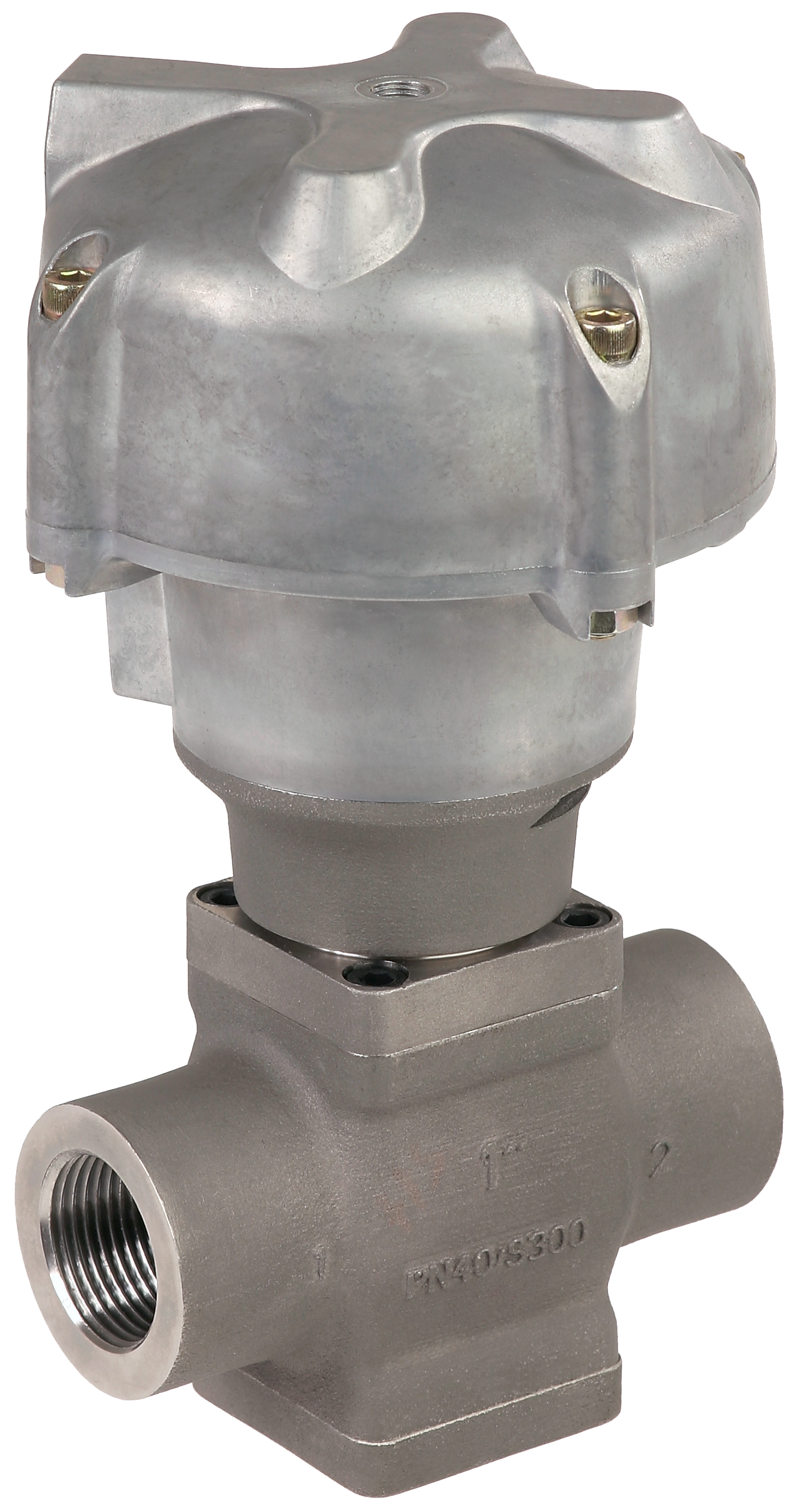

ASCO PRESSURE OPERATED VALVE 298 SERIES ASCO VALVE 298B PEEK - 2/2NC STAINLESS STELL BODY G/RP PN40 ND32 OPERATOR D=150 HIGH TEMPERATURE
