Important information about this product
This product is (or will soon) not be available anymore. Click here to be redirected to its counterpart.
| Body material | Bronze |
| Sealing | PTFE |
| Type of connection | With flanges |
| Diameter of connection | DN25 |
| GN | 10 |
| PN | 16 |
| Control pressure | 2,5 to 10 bar |
| Fluid working Temp | (-)10°C to (+)184°C |
| Operated | NC single-acting air operated |
| Control head | 90 mm |
| Specifications | 2-way - Without bellows |
| Compatibility - fluids | For air and gas of groups 1 & 2, water, oils, liquids of groups 1 & 2 and steam |
| Customs duty number | 8481-2090 |
| Gross weight (kg) | 4,65 |
| Eclass | 27290000 |
| Country of origin | FR |
| UNSPSC Code | 27131700 |

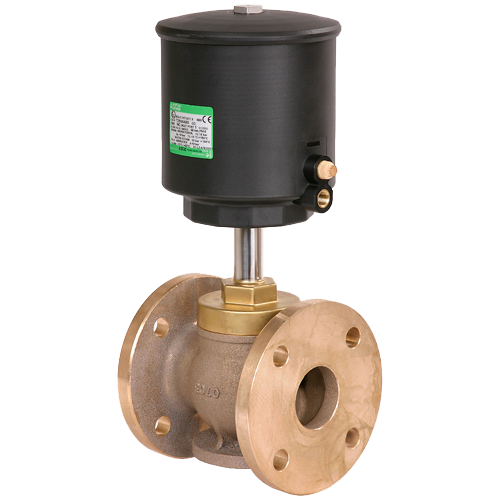

PRESSURE OPERATED ASCO VALVE SERIES 290 2/2 NC BRONZE BODY ENTRY UNDER DISC FLANGED +25 OPERATOR +90 PILOT PRESSURE 2,5 BAR
