Important information about this product
This product is (or will soon) not be available anymore. Click here to be redirected to its counterpart.
| Body material | Stainless Steel |
| Sealing | PTFE |
| Type of connection | Threaded Female |
| Diameter of connection | 3/4'' |
| PN | 16 |
| Control pressure | 2,5 to 10 bar |
| Fluid working Temp | (-)10°C to (+)184°C |
| Operated | NC single-acting air operated |
| Control head | 63 mm |
| Specifications | 2-way - Without bellows |
| Compatibility - fluids | For air and gas of groups 1 & 2, water, oils, liquids of groups 1 & 2 and steam |
| Customs duty number | 8481-2090 |
| Gross weight (kg) | 1,327 |
| Eclass | 27290000 |
| Country of origin | FR |
| UNSPSC Code | 27131700 |

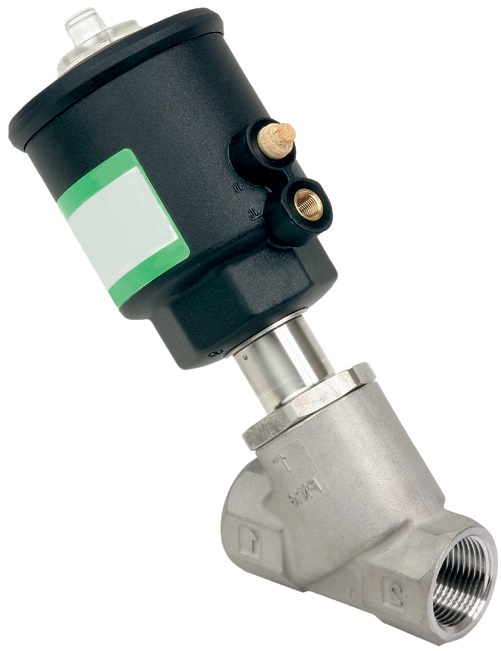

PRESSURE OPERATED ASCO VALVE SERIES 290 VALVE 2/2 NC STAINLESS STEEL ENTRY UNDER DISC G.3/4 D=20 OPERATOR D=63 PILOT PRESSURE 2,5 BAR
