Reference : E290D06B0DA0000
Catalog Price :
€410.00
Tax excluded 21.00 %
| Body material | Bronze |
| Sealing | PTFE |
| Type of connection | Threaded Female |
| Diameter of connection | 1''1/2 |
| PN | 16 |
| Control pressure | 4,5 à 10 bar |
| Fluid working Temp | (-)10°C to (+)184°C |
| Operated | NC single-acting air operated |
| Control head | 90 mm |
| Specifications | 2-way - Without bellows |
| Customs duty number | 8481-2090 |
| Gross weight (kg) | 0 |
| Eclass | 27290000 |
| Country of origin | PL |
| UNSPSC Code | 27131700 |

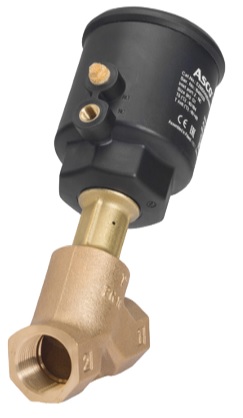

Angle globe valve Asco :
- Bronze body
- PTFE sealing
- Tapepd fitting
- Female-Female in 1"1/2
- PN16
- Flow rate (Kv): 750 l/min
- Admissible differential pressure: min 0 bar / max 8 bar
- Fonction: 2 ways
- Normaly closed
- Pneumatic actuation
- Pilot pressure: 4 to 10 bar
- Command head : 90 mm
- Ambient temperature: (-)10°C à (+)60°C
- Fluid temperature: (-)10°C à (+)184°C
- With optical position indicator
- Anti water hammer
- Bronze body
- PTFE sealing
- Tapepd fitting
- Female-Female in 1"1/2
- PN16
- Flow rate (Kv): 750 l/min
- Admissible differential pressure: min 0 bar / max 8 bar
- Fonction: 2 ways
- Normaly closed
- Pneumatic actuation
- Pilot pressure: 4 to 10 bar
- Command head : 90 mm
- Ambient temperature: (-)10°C à (+)60°C
- Fluid temperature: (-)10°C à (+)184°C
- With optical position indicator
- Anti water hammer
