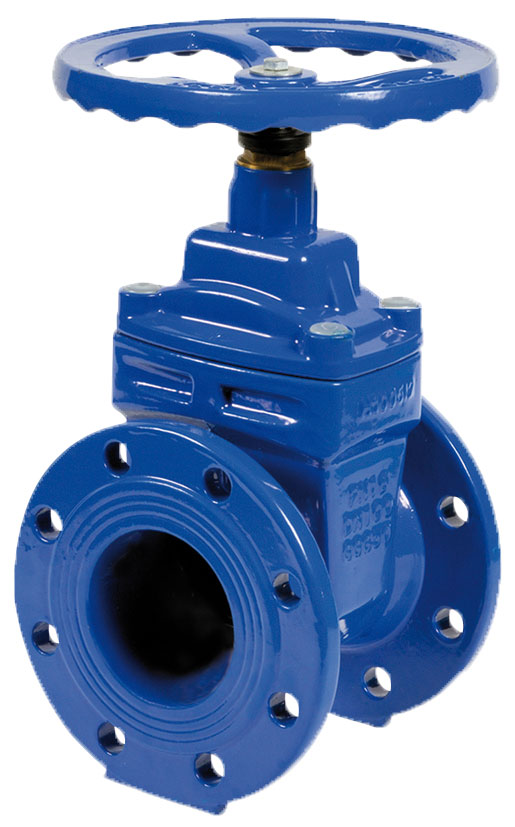

Non contractual picture
Product details Associated products Associated categories

Gate valve - GGG50 Cast Iron body - EPDM - DN100 - Flanges GN16 - (+)110°C - Manually operated

Reference : GAFM.023.100

Catalog Price :

€269.92
Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)

 -

Stock Belgium (Barchon)

 -

Stock Belgium (Chaineux)

Quantity and short lead time
to be confirmed on request
Manufacturer stock Quantity and short lead time
to be confirmed on request
Body material GGG50 cast iron
Sealing EPDM
Type of connection With flanges
Diameter of connection DN100
GN 16
PN 16
Fluid working Temp (-)10°C to (+)110°C
Operated Manually
Specifications 2 ways - Non-rising stem and handwheel
Compatibility - fluids For drinking water and hot water
Customs duty number 8481-8061
Gross weight (kg) 19,9
Eclass 37010000
Country of origin CN
UNSPSC Code 40140000
DUCTILE IRON GATE V. 180 PN10/16 DN100GGG50 EPDM wedge CWC + Handwheel
