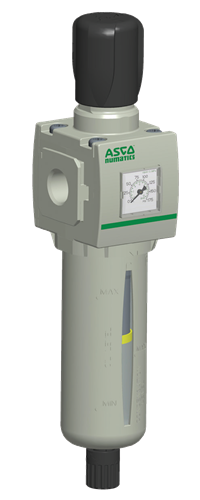

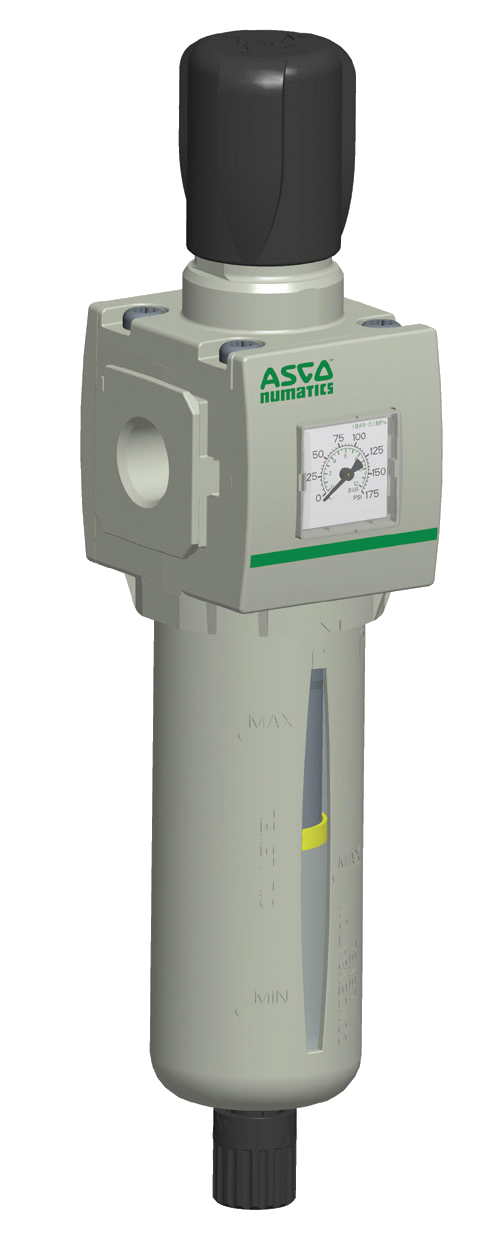

Filter Regulator ASCO Serie 652 - G1/4" - 25 µm - 0,5 to 10 bar - auto drain - Q:4120l/min

Name: Filter Regulator ASCO Serie 652 - G1/4" - 25 µm - 0,5 to 10 bar - auto drain - Q:4120l/min
Brand: Asco
SKU: G652APJP2GA00HA
Price: 166.77 EUR
Availability: OutOfStock

Reference : G652APJP2GA00HA

Catalog Price :

€166.77

Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)	-
Stock Belgium (Barchon)	-
Stock Belgium (Chaineux)	Quantity and short lead time to be confirmed on request
Manufacturer stock	Quantity and short lead time to be confirmed on request

Usual lead time :
11-15 working days

Supplier series	652
Specifications	Particulate
Body material	Aluminum
Piston seal material	NBR
Tank material	Polycarbonate
Filtration	25 µm
Diameter of connection	1/4"
Max flow at upstream pressure	10 bar
Max flow (ANR)	4120 l/min
Regulation pressure	0,5 to 10 bar
Max input pressure at 23°C	16 bar
Set pressure	6,3 bar
?P load loss	1 bar
Fluid working Temp	(-)20°C to (+)50°C
Compatibility - fluids	Air or neutral gas
Customs duty number	8481-1005
Gross weight (kg)	0,546
Eclass	27290000
Country of origin	PL
UNSPSC Code	27131700

Description
Documents

652 SERIES FILTER-REGULATOR PARTICULATE, PORT SIZE/TYPE: 1/4 ISO228/1-G, ELEMENT: 25 MICRON - PARTICULATE, BOWL TYPE: POLYCARBONATE BOWL WITH BOWL GUARD, GAUGE TYPE: LOW PROFILE GAUGE BAR/PSI, PRESSURE RANGE: 7-145 PSIG / 0.5-10 BAR, DRAIN TYPE: AUTO DRAIN NORMALLY OPEN - BRASS
