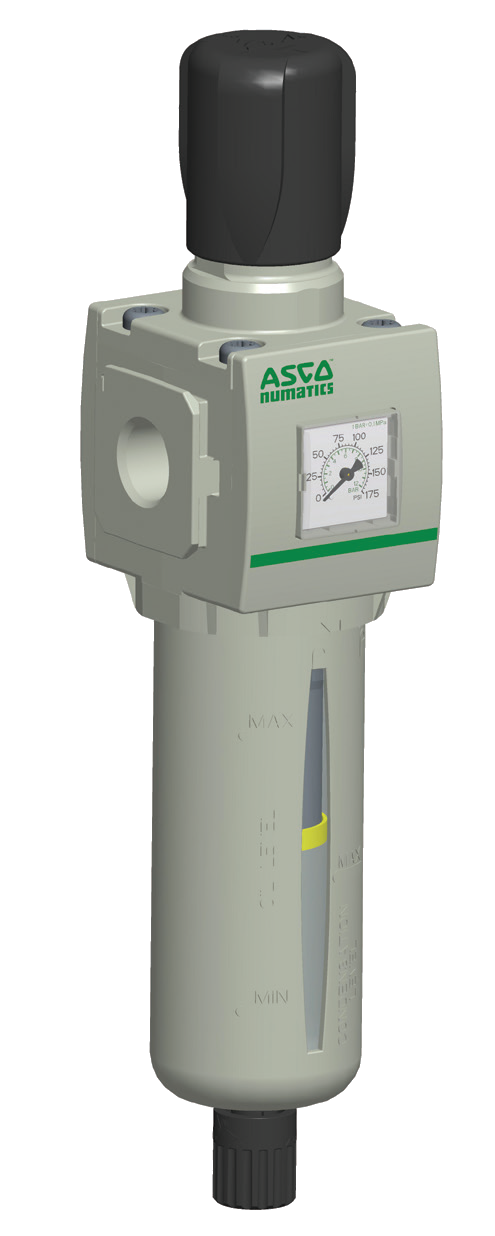

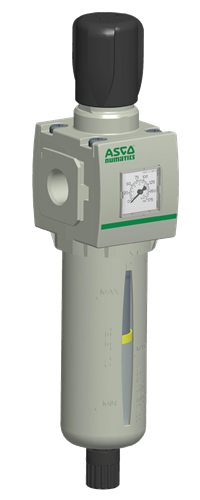

Filter Regulator ASCO Serie 651 - G1/8" - 5 µm - 0,5 to 10 bar - Semi-auto drain - Q:710l/min

Name: Filter Regulator ASCO Serie 651 - G1/8" - 5 µm - 0,5 to 10 bar - Semi-auto drain - Q:710l/min
Brand: Asco
SKU: G651APBP1GA00HN
Price: 92.29 EUR
Availability: OutOfStock

Reference : G651APBP1GA00HN

Catalog Price :

€92.29

Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)	-
Stock Belgium (Barchon)	-
Stock Belgium (Chaineux)	Quantity and short lead time to be confirmed on request
Manufacturer stock	Quantity and short lead time to be confirmed on request

Usual lead time :
11-15 working days

Supplier series	651
Specifications	Particulate
Body material	Aluminum
Piston seal material	NBR
Tank material	Polycarbonate
Filtration	5 µm
Diameter of connection	1/8''
Max flow at upstream pressure	10 bar
Max flow (ANR)	710 l/min
Regulation pressure	0,5 to 10 bar
Max input pressure at 23°C	16 bar
Set pressure	6,3 bar
?P load loss	1 bar
Fluid working Temp	(-)20°C to (+)50°C
Compatibility - fluids	Air or neutral gas
Customs duty number	8481-1005
Gross weight (kg)	0,39
Eclass	27290000
Country of origin	PL
UNSPSC Code	27131700

Description
Documents

PARTICULATE FILTER REGULATOR G1/8 WITH 5µ FILTER ELEMENT, POLYCARBONATE BOWL WITH PROTECTOR , WITH FLAT GAUGE, SEMI-AUTOMATIC DRAIN, REGULATION ZONE 0,5-10 BAR
