Reference : STFX.001.200/10
Catalog Price :
€975.22
Tax excluded 21.00 %
| Body material | GG25 cast iron |
| Sealing | Graphite |
| Filtration | 1500 µm |
| Type of connection | With flanges |
| Diameter of connection | DN200 |
| GN | 10 |
| PN | 16 |
| Fluid working Temp | (-)10°C to (+)80°C |
| Operation | Horizontal or vertical mounting with descending fluid |
| Compatibility - fluids | For water supply, distribution and evacuation networks |
| Customs duty number | 8481-9000 |
| Gross weight (kg) | 68 |
| Eclass | 37010000 |
| Country of origin | CN |
| UNSPSC Code | 40140000 |

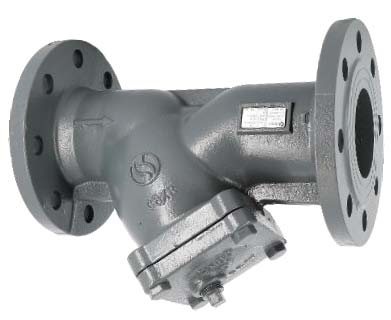

Flanged Y-Filter :
- DN 200
- Flanged connection according to EN 1092-2 PN10
- Filtration : 2000µm
- Maximum operating pressure 10 bar
- Body and cover made of cast iron EN GJS-500-7 (GGG40)
- Alkyd paint, grey colour RAL 7011, thickness 100 µm
- Removable 304 stainless steel screen
- Graphite cover seal
- Operating temperature range from -10°C to +120°C
- With drain plug G 1/2"
- DN 200
- Flanged connection according to EN 1092-2 PN10
- Filtration : 2000µm
- Maximum operating pressure 10 bar
- Body and cover made of cast iron EN GJS-500-7 (GGG40)
- Alkyd paint, grey colour RAL 7011, thickness 100 µm
- Removable 304 stainless steel screen
- Graphite cover seal
- Operating temperature range from -10°C to +120°C
- With drain plug G 1/2"
