Reference : BEKOMAT 12
Brand reference : 2000018
Catalog Price :
€389.00
Tax excluded 21.00 %
| Specifications | Electric drain |
| Body material | Aluminum |
| Input connection | G1/2" |
| Output connection | G3/8" |
| Actual flow at 7 bar | 65 m³/min |
| PN | 16 |
| Customs duty number | 8481-8099 |
| Gross weight (kg) | 0,8 |
| Eclass | 27290000 |
| Country of origin | DE |
| UNSPSC Code | 27131700 |

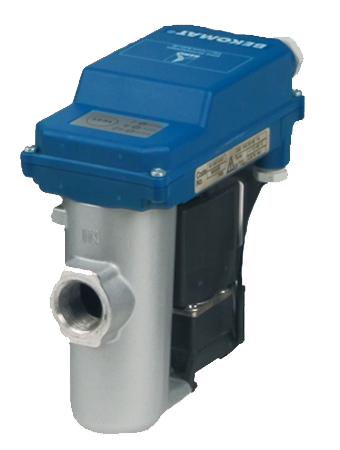

BEKO electric condensate drain:
- Maximum capacity if used with compressor: 6.5 m³/min
- Maximum capacity if used with dryer: 13 m³/min
- Maximum capacity if used with filter: 65 m³/min
- Aluminum body
- Supply voltage: 230V 50Hz
- Operating pressure: 0.8 to 16 bar
- Compatibility - fluids: oily condensates
- Connection type: Tapped
- Inlet connection: 1 x G1/2’’F
- Outlet connection (evacuation): 1 x G3/8’’M
- Inner diameter of the hose: 10 to 13 mm
- Operating temperature: From +1 to 60°C
- Compatible wear part kit: 2000049
- Compatible bracket: 2000035
- Maximum capacity if used with compressor: 6.5 m³/min
- Maximum capacity if used with dryer: 13 m³/min
- Maximum capacity if used with filter: 65 m³/min
- Aluminum body
- Supply voltage: 230V 50Hz
- Operating pressure: 0.8 to 16 bar
- Compatibility - fluids: oily condensates
- Connection type: Tapped
- Inlet connection: 1 x G1/2’’F
- Outlet connection (evacuation): 1 x G3/8’’M
- Inner diameter of the hose: 10 to 13 mm
- Operating temperature: From +1 to 60°C
- Compatible wear part kit: 2000049
- Compatible bracket: 2000035
