Reference : 20/AC
Brand reference : 4017119
Catalog Price :
€1,490.00
Tax excluded 21.00 %
| Output connection | G1/2" |
| Power of installed motor (kW) | 0.16 kW |
| Actual flow at 7 bar | 20 m³/h (±15%) |
| Type of gas | R134a |
| Motor power consumed (kW) | 0.16 |
| Voltage | 230 V 50 Hz single phase |
| Gross weight (kg) | 0 |
| Eclass | 27290000 |
| UNSPSC Code | 27131700 |

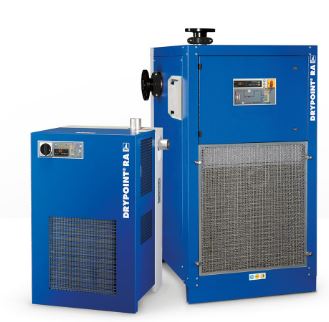

DRYPOINT RA/AC refrigeration dryer:
- Flow rate at (+)3°C: 21 m³/h
- Connection type: Threaded/Tapped
- Connection diameter: G1/2" Female
- Pressure range: Max 16bar
- Voltage: 230 V 50 Hz Single phase
- Refrigerant gas: R134A
- Drain: automatic BEKOMAT
- Consumption: 0.16 kW
- Pressure drop generated (?p): 0.02 bar
- Max inlet temperature: +70°C
- Ambient temperature range: +2°C to +50°C
- Efficient drying thanks to a highly efficient aluminum plate heat exchanger
- Stable pressure dew point of +3°C through the use of a hot gas bypass valve with external pressure equalization and pressure-controlled condenser fan
- Optimal protection of the refrigeration cycle via low and high pressure switch (standard from model 490)
- Central control panel to inspect dryer operation and monitor integrated BEKOMAT®
- Simple and economical maintenance process
- Flow rate at (+)3°C: 21 m³/h
- Connection type: Threaded/Tapped
- Connection diameter: G1/2" Female
- Pressure range: Max 16bar
- Voltage: 230 V 50 Hz Single phase
- Refrigerant gas: R134A
- Drain: automatic BEKOMAT
- Consumption: 0.16 kW
- Pressure drop generated (?p): 0.02 bar
- Max inlet temperature: +70°C
- Ambient temperature range: +2°C to +50°C
- Efficient drying thanks to a highly efficient aluminum plate heat exchanger
- Stable pressure dew point of +3°C through the use of a hot gas bypass valve with external pressure equalization and pressure-controlled condenser fan
- Optimal protection of the refrigeration cycle via low and high pressure switch (standard from model 490)
- Central control panel to inspect dryer operation and monitor integrated BEKOMAT®
- Simple and economical maintenance process
