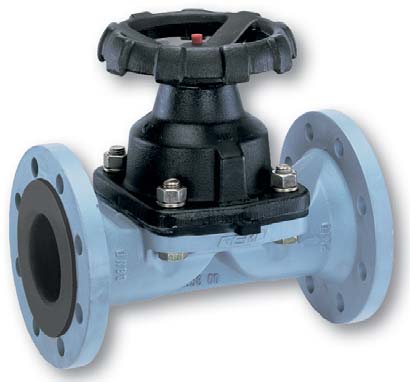

Diaphragm valve - GG25 Cast Iron body - NBR - DN20 - Flanges GN16 - (+)100°C - Manual wheel

Reference : 67520D8820

Brand reference : 88007209

Catalog Price :

€112.64

Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)	-
Stock Belgium (Barchon)	-
Stock Belgium (Chaineux)	Quantity and short lead time to be confirmed on request
Manufacturer stock	Quantity and short lead time to be confirmed on request

Usual lead time :
2 weeks

Body material	GG25 cast iron
Sealing	NBR
Type of connection	With flanges
Diameter of connection	DN20
GN	16
PN	10
Fluid working Temp	(-)10°C to (+)100°C
Operated	Manual by handwheel
Specifications	Standard bore
Compatibility - fluids	For common compatible fluids
Customs duty number	8481-8087
Gross weight (kg)	0
Eclass	37010000
UNSPSC Code	40140000
