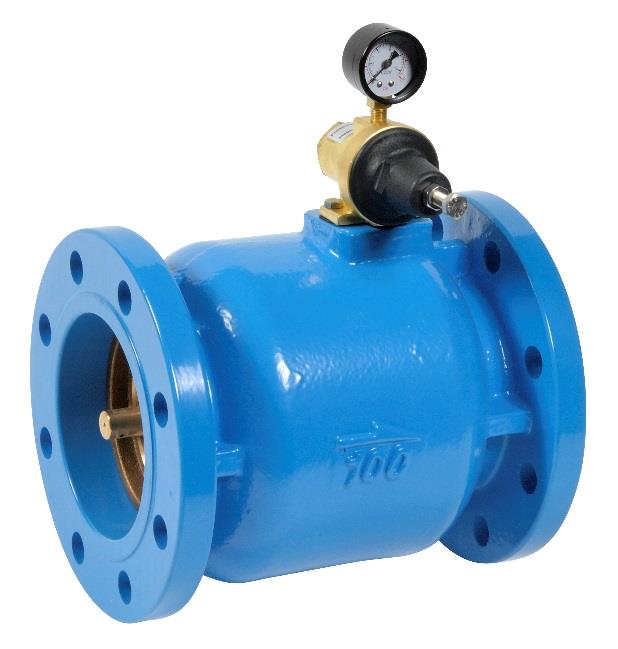

Coaxial pressure reducing valve - Cast Iron body - Flanges DN100 - PN16 - GN16 - Range: 1 to 7 bar

Reference : DRFM.001.100

Catalog Price :

€2,528.22

Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)	-
Stock Belgium (Barchon)	-
Stock Belgium (Chaineux)	Quantity and short lead time to be confirmed on request
Manufacturer stock	Quantity and short lead time to be confirmed on request

Body material	Cast iron
Sealing	NBR
Type of connection	With flanges
Diameter of connection	DN100
GN	16
PN	16
Downstream pressure	1 to 7 bar
Fluid working Temp	(-)10°C to (+)80°C
Compatibility - fluids	For general fluids
Customs duty number	8481-1099
Gross weight (kg)	26
Eclass	37010000
Country of origin	TW
UNSPSC Code	40140000

Description
Documents

CAST IRON PRESSURE RED.V. BFR PN16 DN100 1-7bar Epoxy coated/NBR seat

2712-catalogue méca-fluid (v.3.2019.fr)_page198.pdf
