Reference : CHWX.002.125
Catalog Price :
€144.65
Tax excluded 21.00 %
| Body material | Steel |
| Sealing | NBR |
| Type of connection | Wafer |
| Diameter of connection | DN125 |
| GN | 10/16 |
| PN | 16 |
| Fluid working Temp | (-)10°C to (+)80°C |
| Operation | Horizontal or vertical mounting with ascending fluid |
| Specifications | Swing check |
| Compatibility - fluids | For water supply, distribution and evacuation networks |
| Customs duty number | 8481-3091 |
| Gross weight (kg) | 3,117 |
| Eclass | 37010000 |
| Country of origin | CN |
| UNSPSC Code | 40140000 |

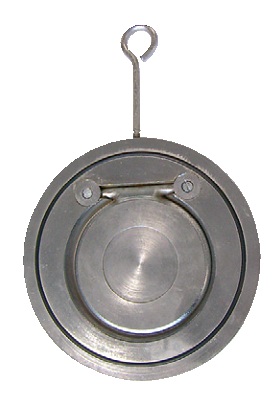

Swing check valve :
- Steel body
- NBR sealing
- Wafer connection in DN125
- PN16
- GN10/16
- Operation: horizontal or vertical installation with rising fluid
- Without control
- Operating temperature of the fluid : (-)10°C to (+)80°C
- Steel body
- NBR sealing
- Wafer connection in DN125
- PN16
- GN10/16
- Operation: horizontal or vertical installation with rising fluid
- Without control
- Operating temperature of the fluid : (-)10°C to (+)80°C
